Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  3. Remove the windshield wiper washer hose from air inlet grille.

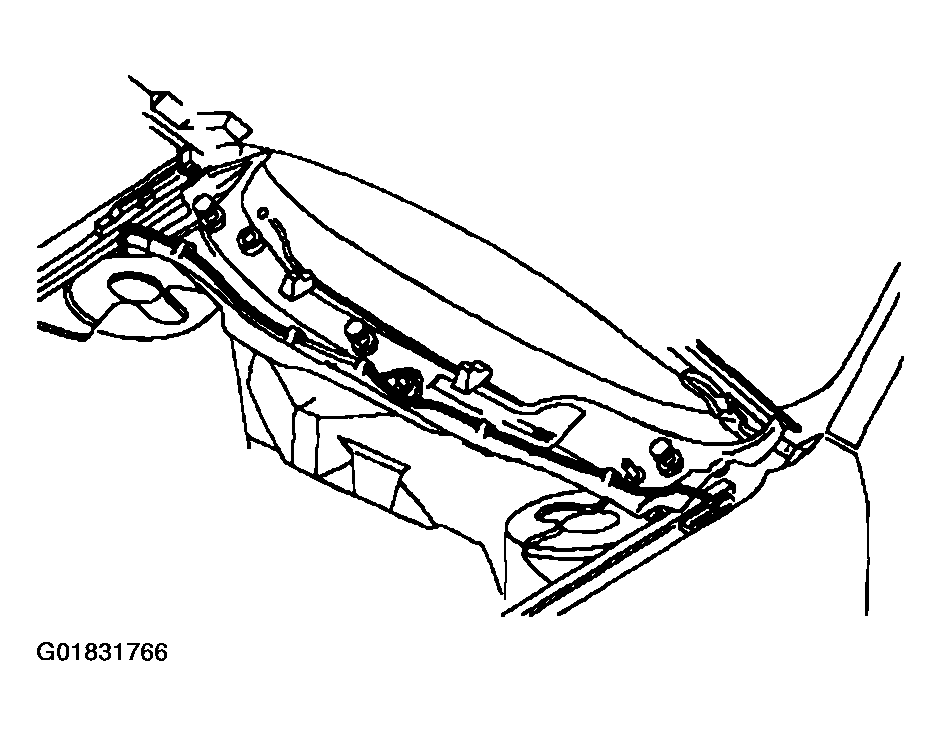

    Fig 1: Removing Windshield Wiper Washer Hose From Air Inlet Grille
    G01831766Courtesy of GENERAL MOTORS CORP.
  4. Use the J 38778 to remove the push-in retainers from the air inlet grille.
  5. Remove the air inlet grille from the vehicle.

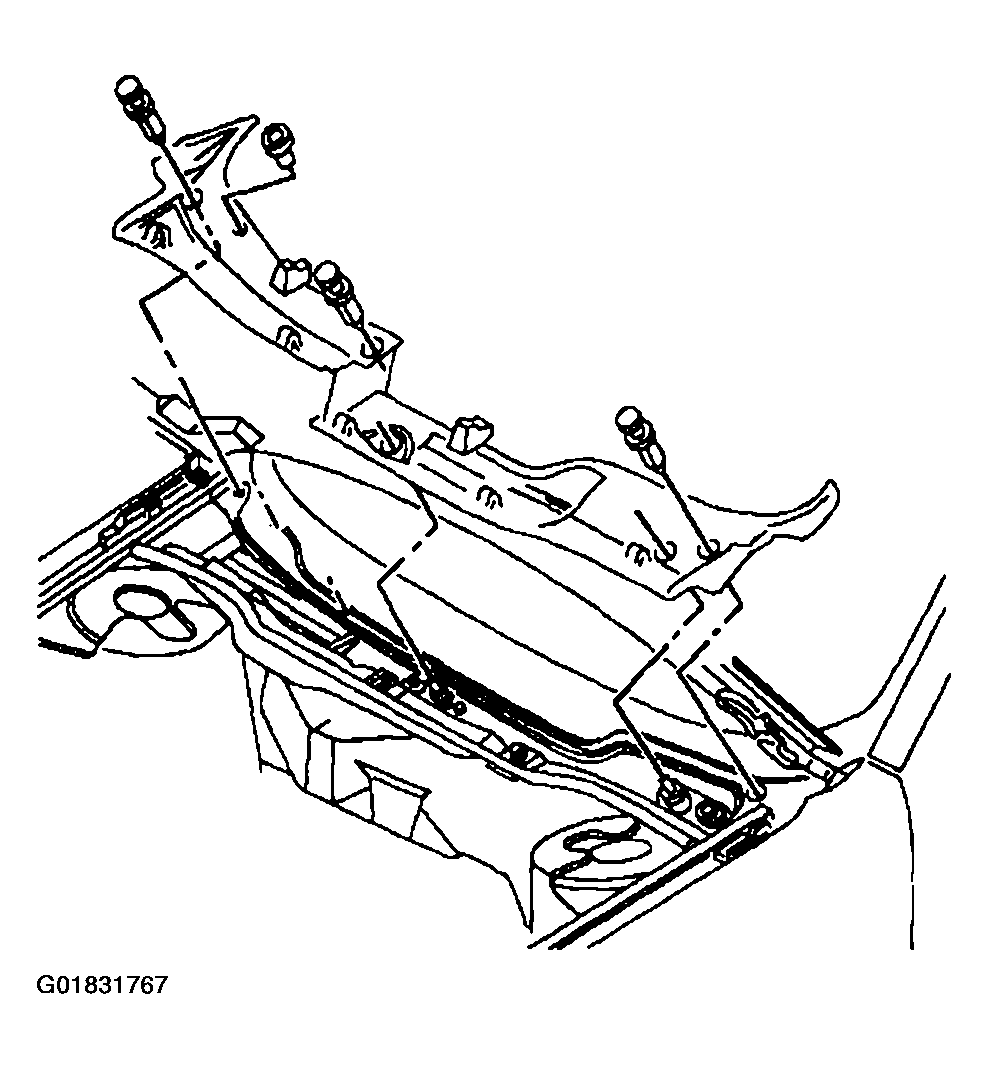

    Fig 2: Removing Push - Retainers From Air Inlet Grille
    G01831767Courtesy of GENERAL MOTORS CORP.
