Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air inlet grille to the vehicle.
  2. Install the push-in retainers to the air inlet grille.

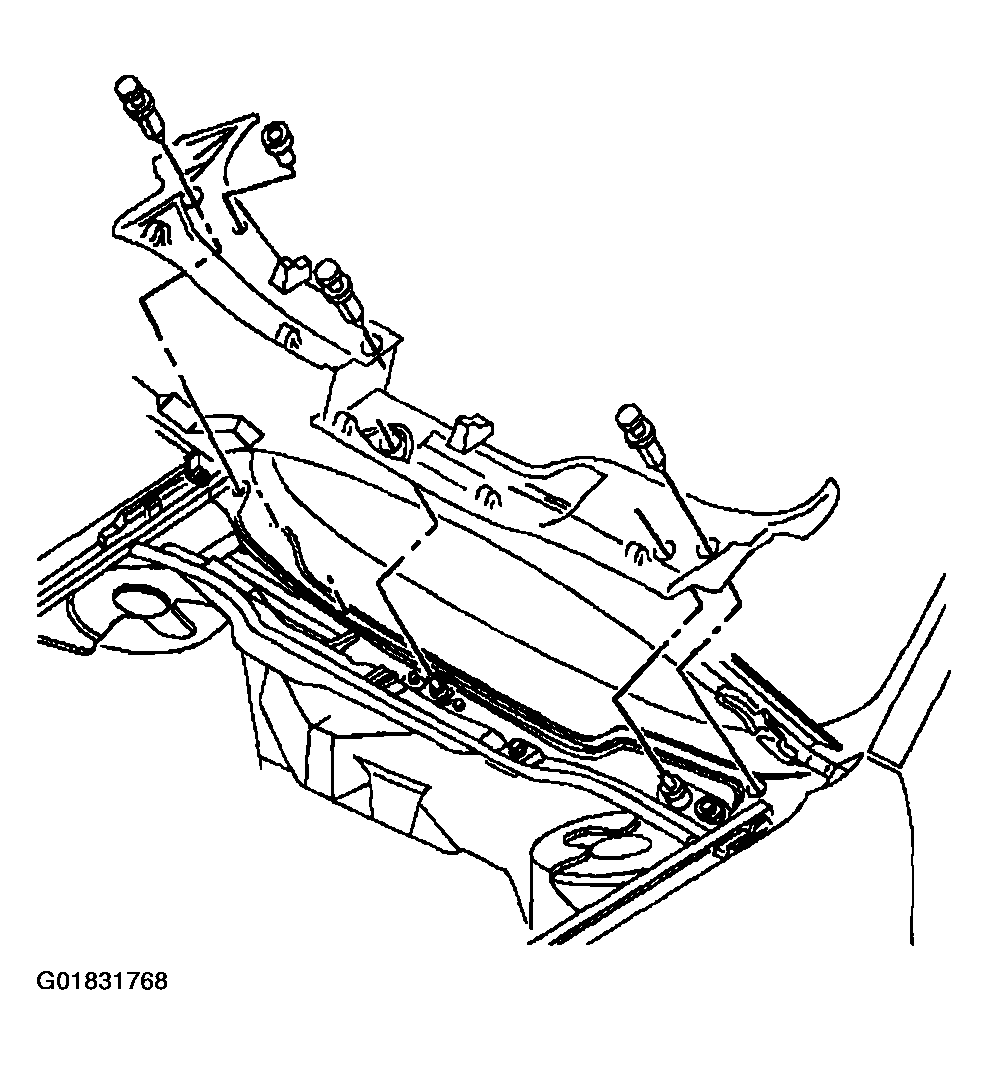

    Fig 1: Installing Push - Retainers To Air Inlet Grille
    G01831768Courtesy of GENERAL MOTORS CORP.
  3. Install the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  4. Install the windshield wiper washer hose to air inlet grille.
  5. Close the hood.

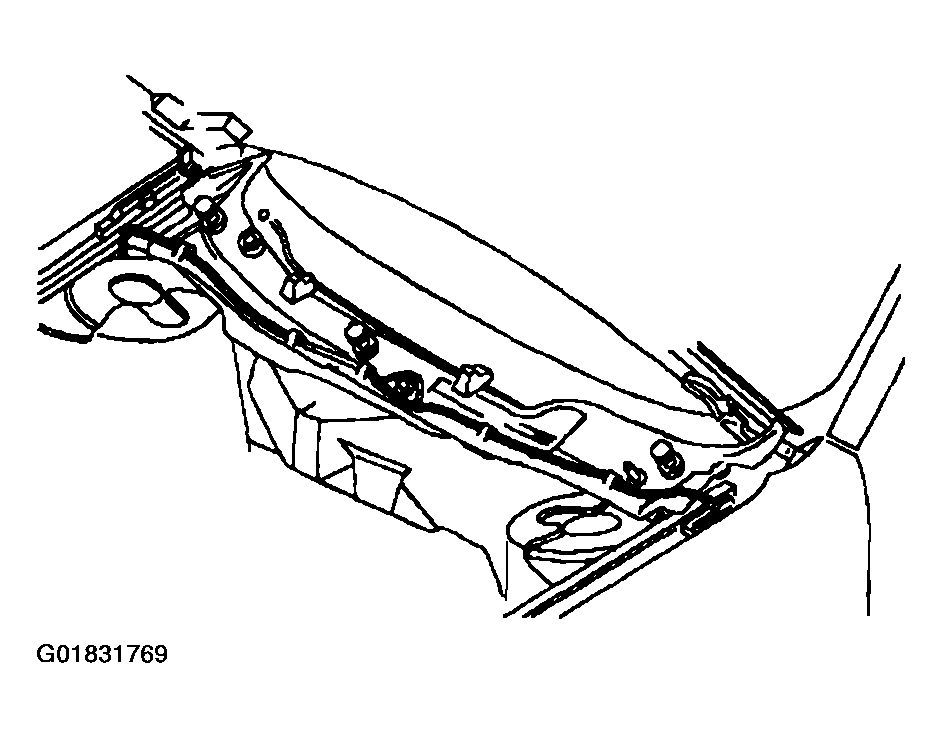

    Fig 2: Installing Windshield Wiper Washer Hose To Air Inlet Grille
    G01831769Courtesy of GENERAL MOTORS CORP.
