Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper seat belt guide loop attachment nut.
  2. Remove the front and rear door weatherstrips from the pinchweld flange as required.
  3. Remove the upper trim panel from the center pillar using J 38778  .
  4. Remove the upper trim panel from the vehicle.

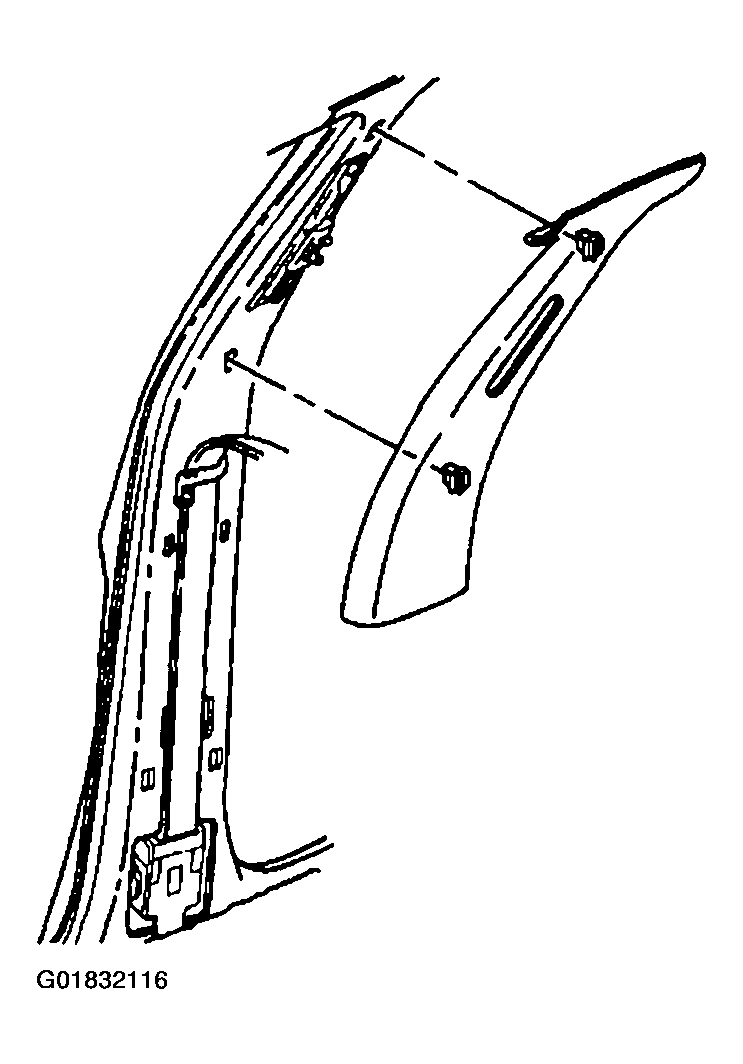

    Fig 1: Removing Upper Trim Panel From Vehicle
    G01832116Courtesy of GENERAL MOTORS CORP.
