Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the upper trim panel to the center pillar.
  2. Press firmly on the upper trim panel until the retainers are fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the upper seat belt guide loop attachment nut.

    Tighten

    Tighten the guide loop attachment nut to 42 N.m (31 lb ft).

  4. Install the front and rear door weatherstrips.

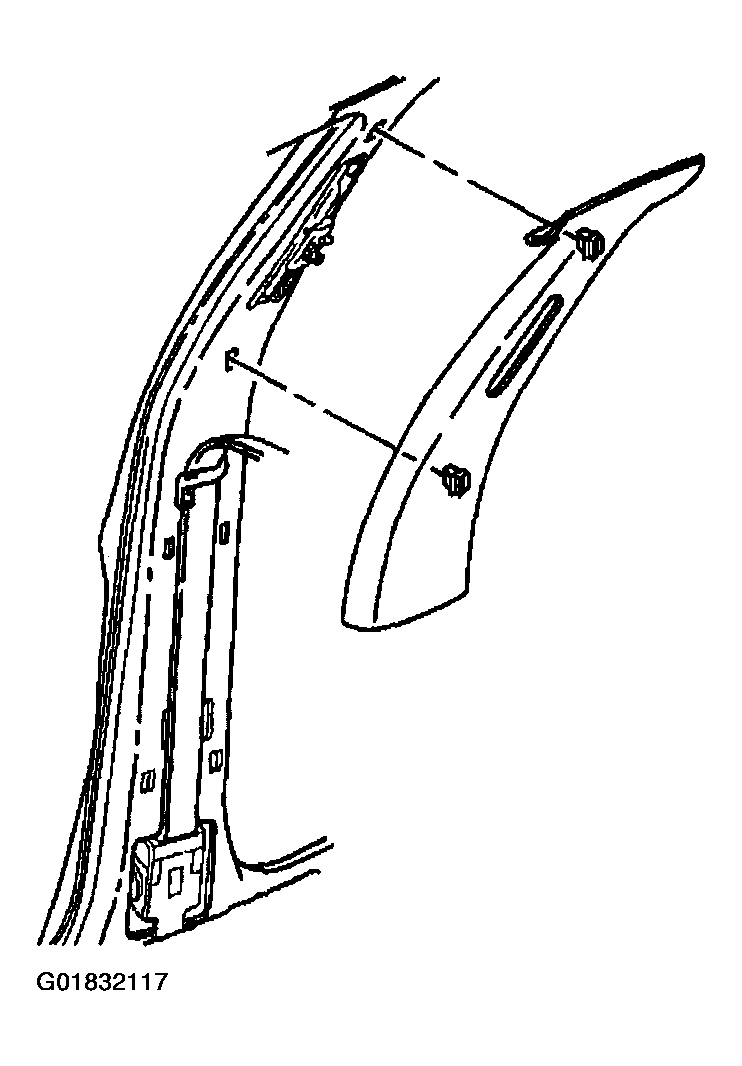

    Fig 1: Installing Upper Trim Panel To Vehicle
    G01832117Courtesy of GENERAL MOTORS CORP.
