Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the rear window trim panel toward the back of the vehicle to align into position.
  2. Install the rear seat belts through slots in the rear shelf trim panel.
  3. Install the rear shelf trim panel to rear shelf push-in retainers.
  4. Install the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper .

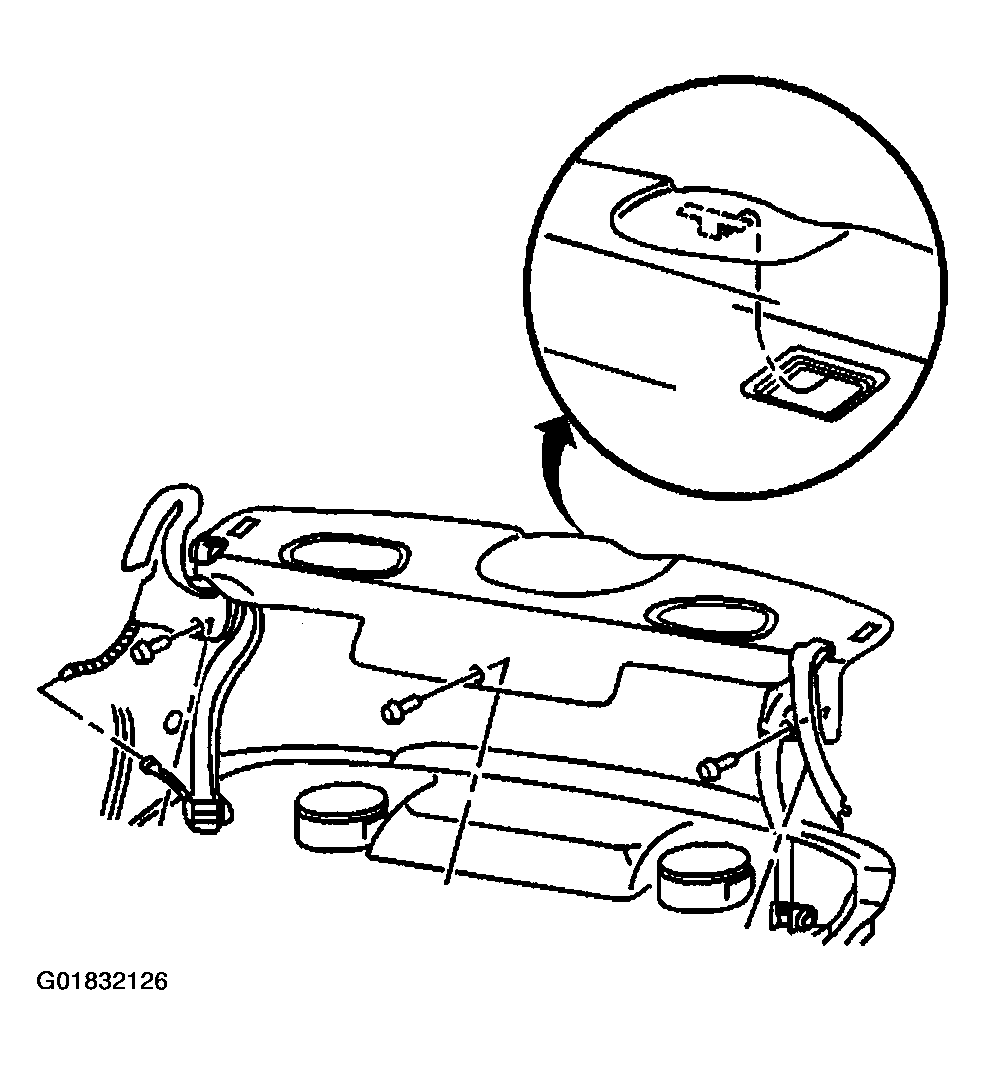

    Fig 1: Installing Rear Shelf Trim Panel To Rear Shelf Push - In Retainers
    G01832126Courtesy of GENERAL MOTORS CORP.
  5. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON - FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  6. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  7. Install the high mounted stop lamp bulb to the rear shelf. Refer to HIGH MOUNTED STOP LAMP BULB REPLACEMENT in Lighting Systems.

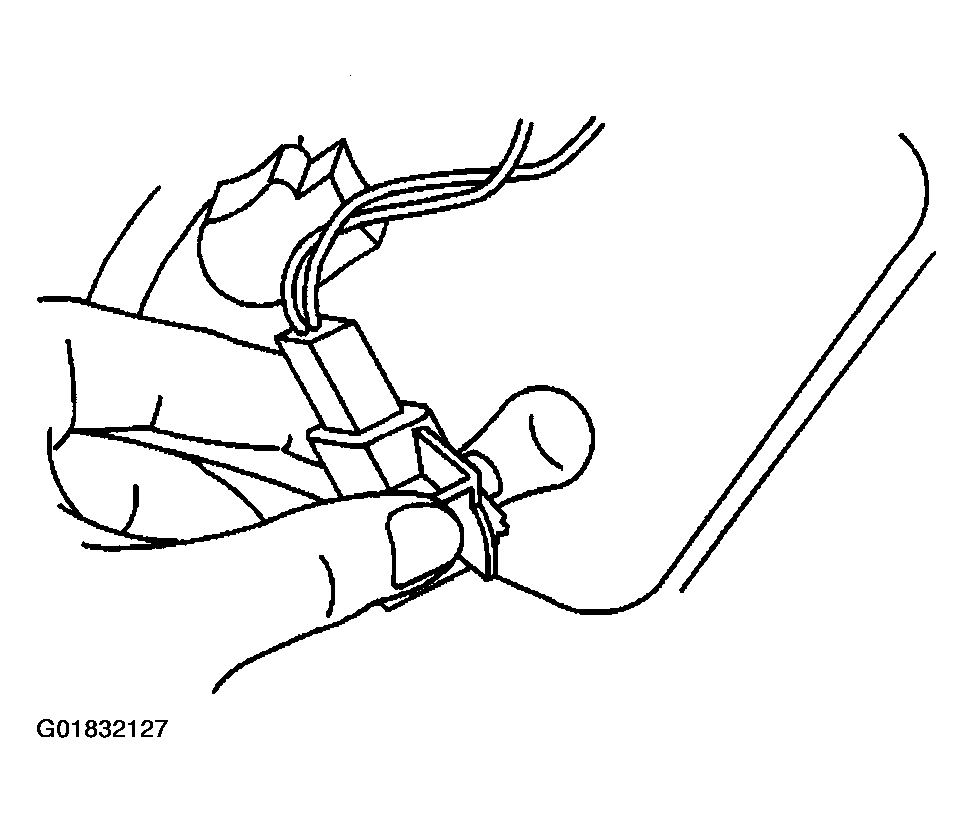

    Fig 2: Installing High Mounted Stop Lamp Bulb To Rear Shelf
    G01832127Courtesy of GENERAL MOTORS CORP.
