Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use J 38778  to remove the quarter upper trim by disengaging push-in retainers.
  2. Pull the rear door weatherstrip from the pinchweld flange as required.
  3. Pull the trim panel to release the retainers.
  4. Pull the lower trim panel extension, behind the seat, forward to free the slide in retainer.
  5. Remove quarter upper trim from vehicle.

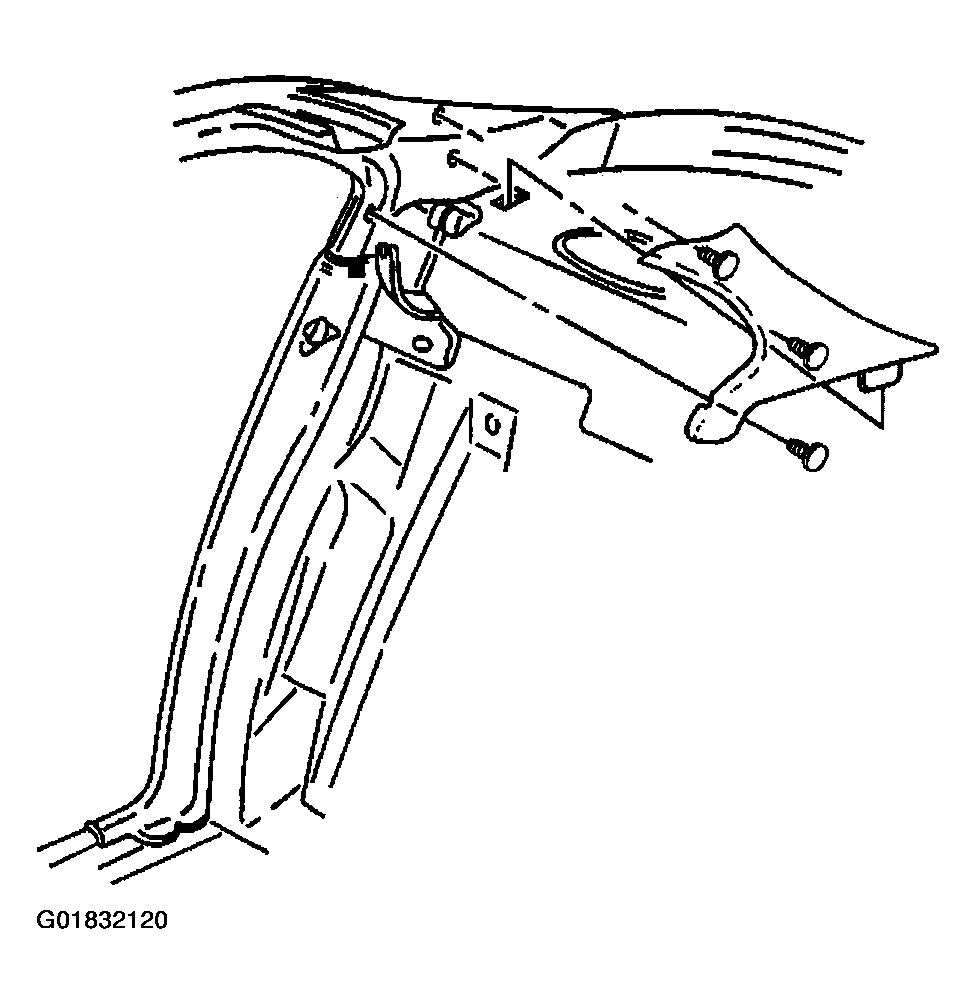

    Fig 1: Removing Trim Panel & Retainers
    G01832120Courtesy of GENERAL MOTORS CORP.
