Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

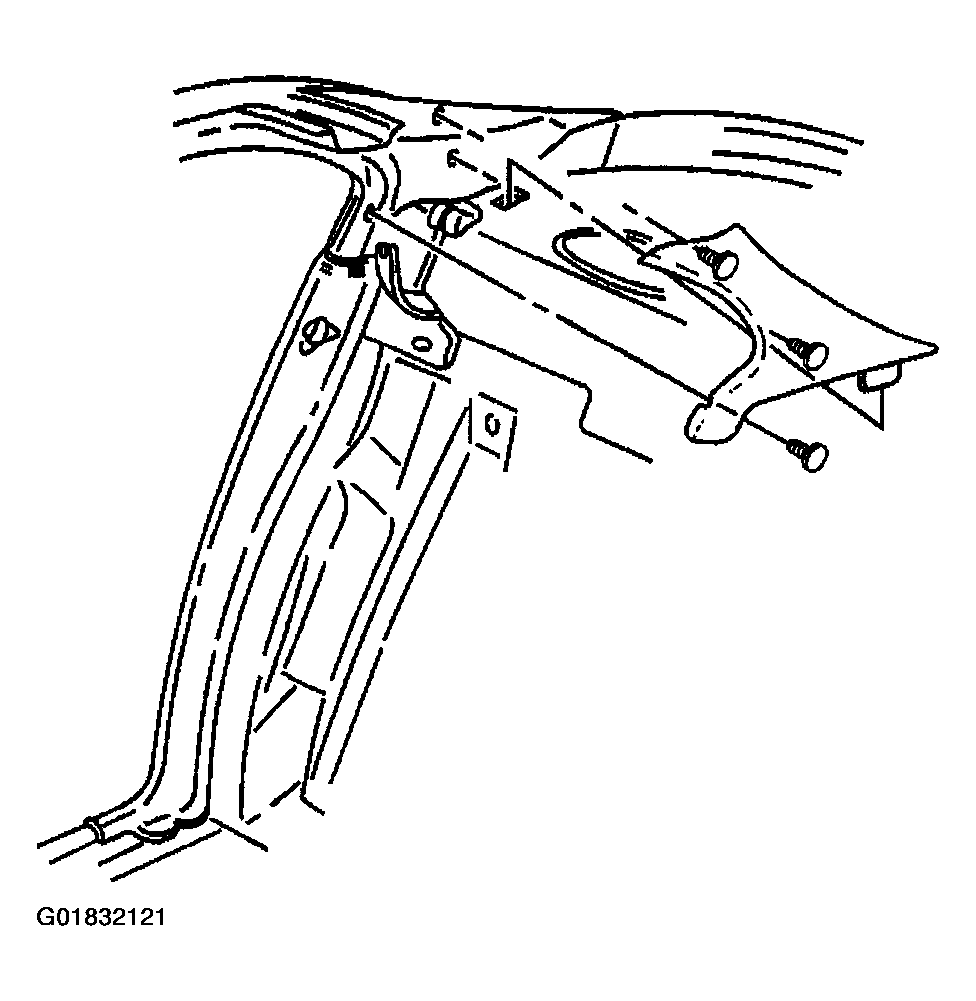

- Position the trim panel and push rearward to engage the slide in retainer.
- Push the trim panel to engage the retainers.
- Install the push-in retainer and press in until fully seated.
- Install the rear door weatherstrip.
Courtesy of GENERAL MOTORS CORP.
