Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON - FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  3. Remove the rear door weatherstrip from the pinchweld flange as required.
  4. Use the J 38778  to remove the rear lower quarter trim panel to body push-in retainers.
  5. Remove the rear lower quarter trim panel from the vehicle.

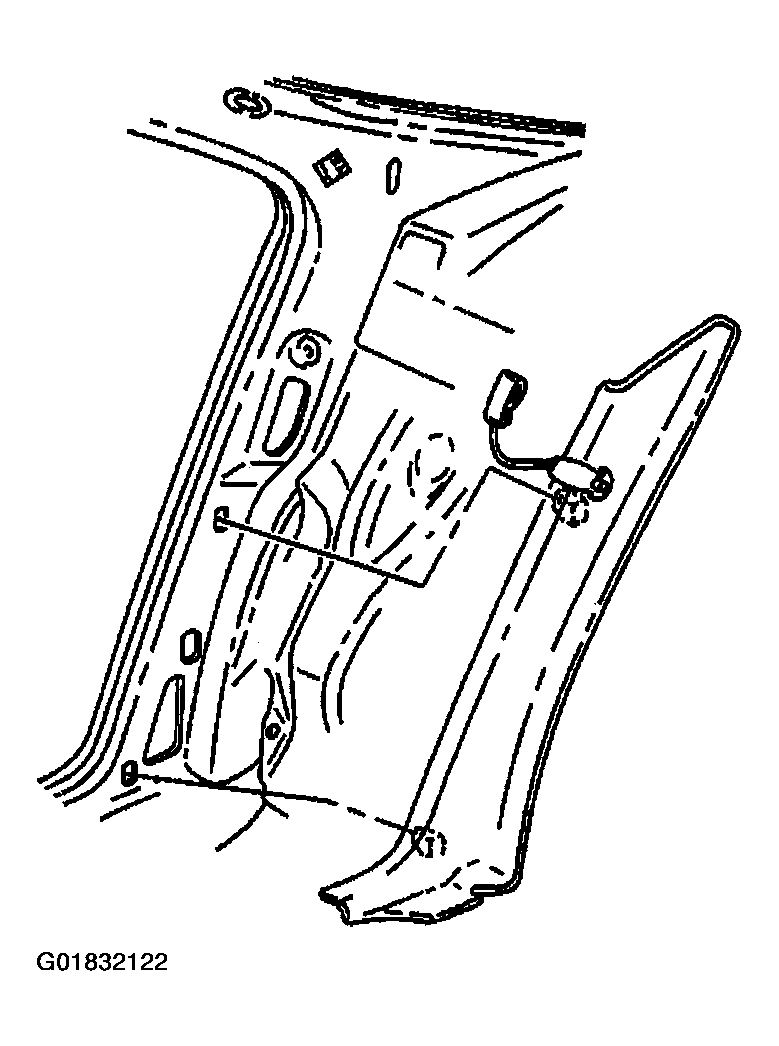

    Fig 1: Removing Rear Lower Quarter Trim Panel & Retainers
    G01832122Courtesy of GENERAL MOTORS CORP.
