Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear lower quarter trim panel to the vehicle.
  2. Install the rear lower quarter trim panel to body push-in retainers. Apply pressure until fully seated.
  3. Install the rear door weatherstrip.
  4. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON - FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.
  5. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.

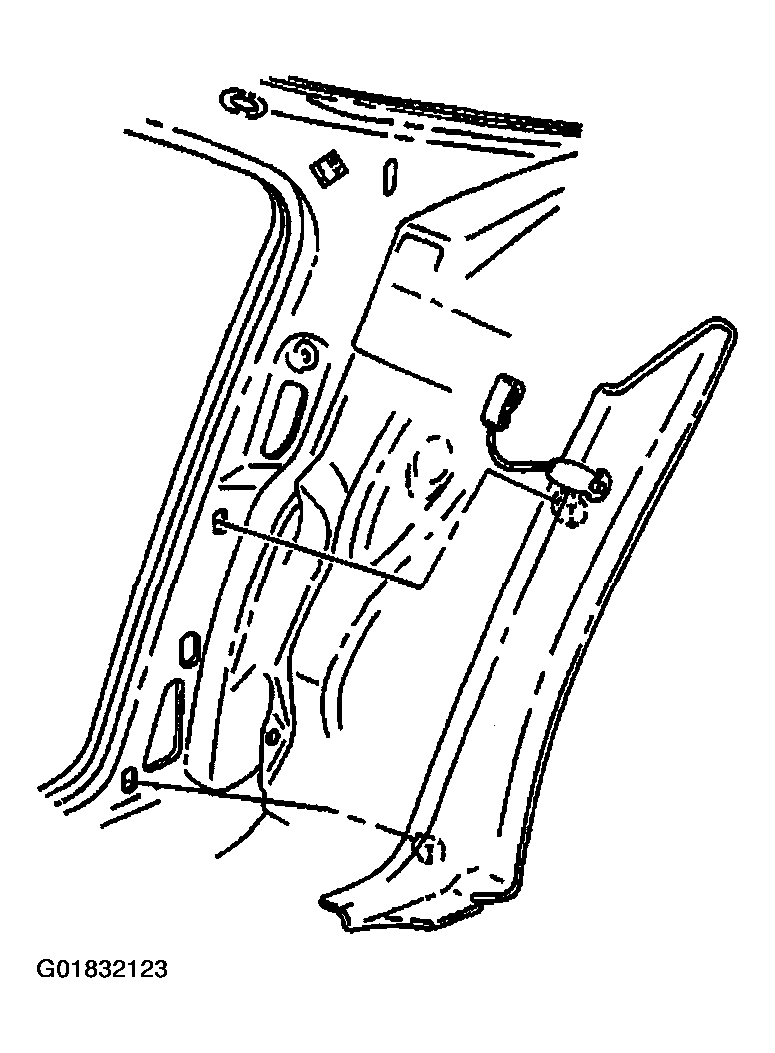

    Fig 1: Installing Rear Lower Quarter Trim Panel & Retainers
    G01832123Courtesy of GENERAL MOTORS CORP.
