Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the carpet retainers. Refer to Carpet Retainer Replacement - Front  and to Carpet Retainer Replacement - Rear .
  2. Remove the front and rear door weatherstrips from the pinchweld flange as required.
  3. Remove the lower trim panel from the center pillar using J 38778  .
  4. Remove the seat belt from the slot in the lower trim panel.
  5. Remove the lower trim panel from the vehicle.

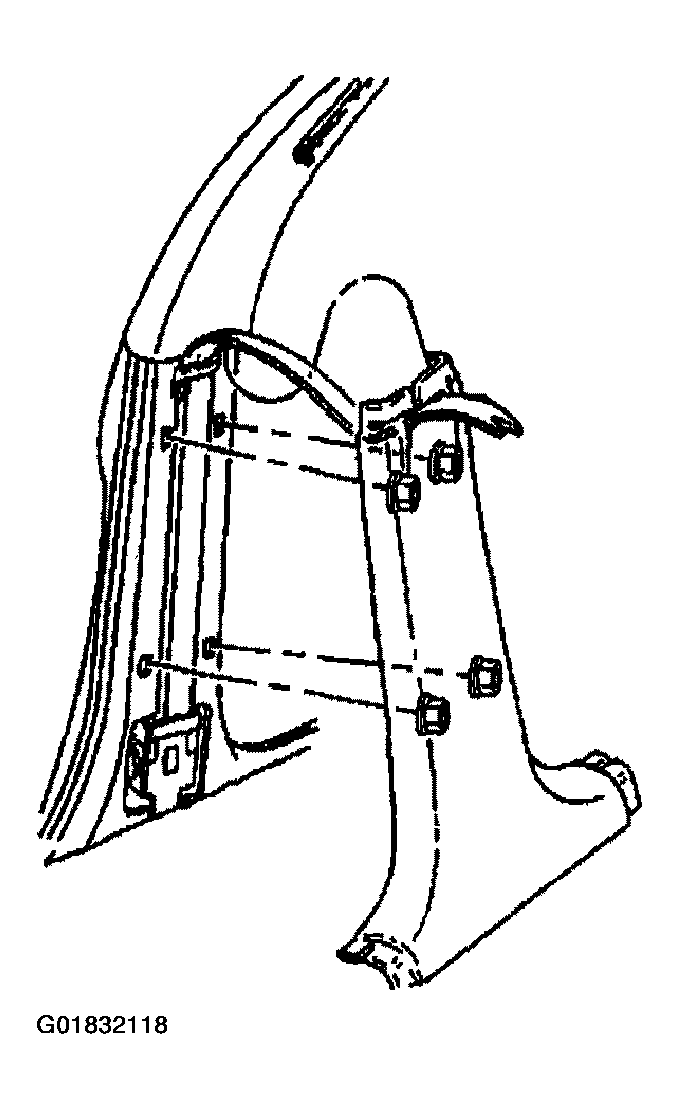

    Fig 1: Removing Lower Trim Panel From Vehicle
    G01832118Courtesy of GENERAL MOTORS CORP.
