Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt to the slot in the lower trim panel.
  2. Align the lower trim panel to the center pillar.
  3. Press firmly on the lower trim panel until fully seated.
  4. Install the carpet retainers. Refer to Carpet Retainer Replacement - Front  and to Carpet Retainer Replacement - Rear .
  5. Install the front and rear door weatherstrips.

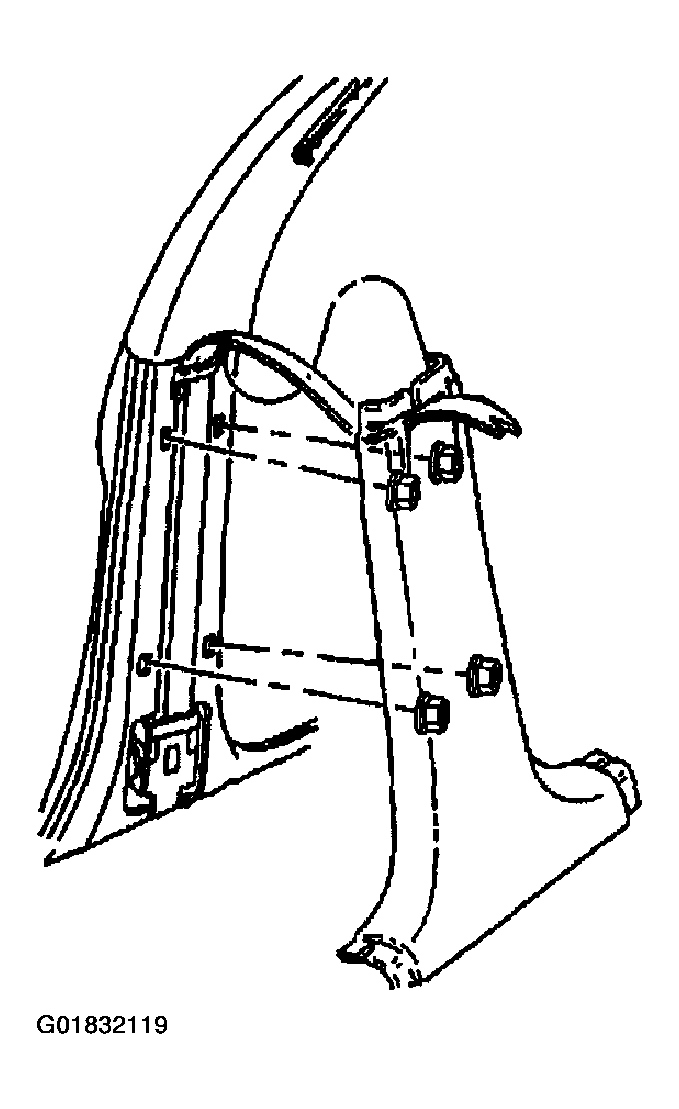

    Fig 1: Installing Lower Trim Panel To Vehicle
    G01832119Courtesy of GENERAL MOTORS CORP.
