Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unhook the sunshade from the retainer.
  2. Remove the sunshade retainer by inserting a small, flat-bladed tool to push upwards on the tab until the tab snaps upwards and is recessed in the retainer.
  3. Gently pull downward on the retainer to remove the retainer from the headliner.

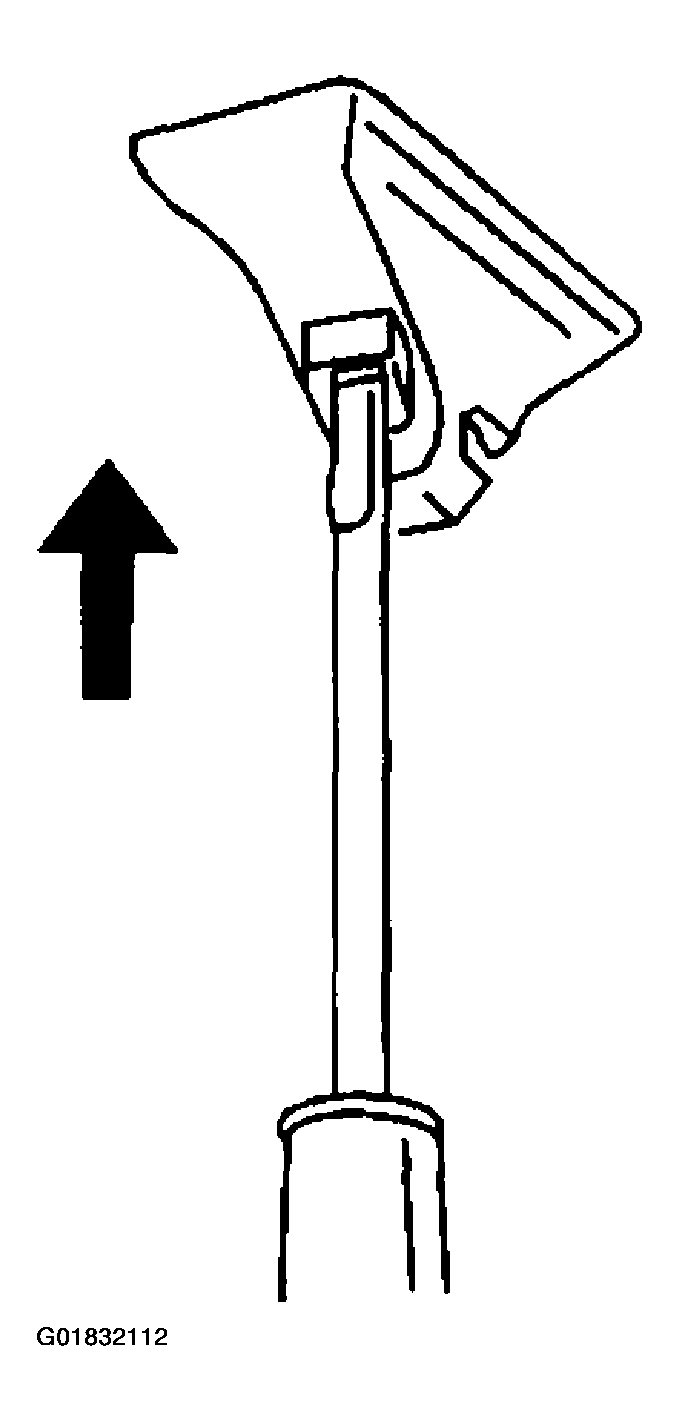

    Fig 1: Removing Sunshade Retainer Using Flat - Bladed Tool
    G01832112Courtesy of GENERAL MOTORS CORP.
