Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
Important: Before the sunshade retainer is installed press on the back side of the locking retainer tab until the tab is in the pre-installation position.

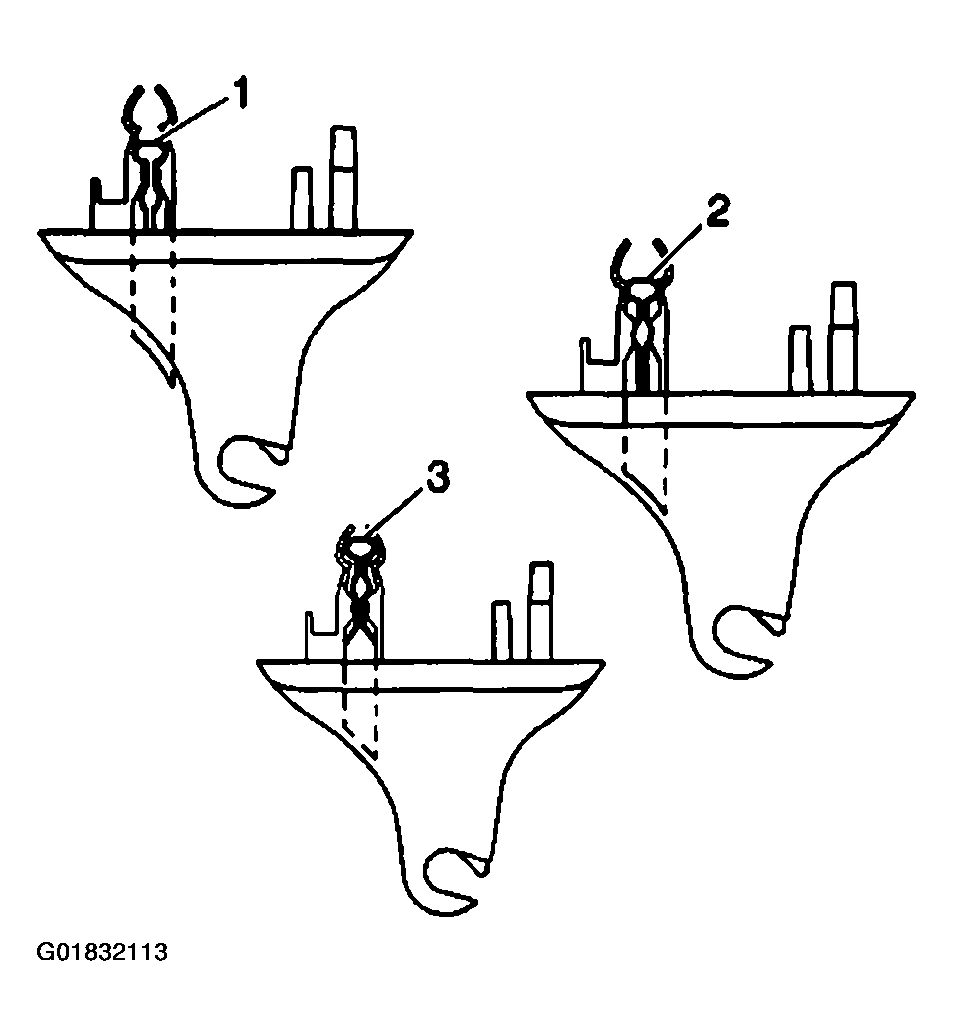

- Position the Locking Tab for installation.
- Position (1) Locking Tab - Pre-installation position
- Position (2) Locking Tab - Installed position
- Position (3) Locking Tab - Released position
- Push the retainer upwards into the headliner
- Press upwards on the tab until the tab is flush with the retainer
- Return the sunshade to the original position
