Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window trim panel. Refer to Trim Panel Replacement - Rear Window Shelf .
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  3. Remove the rear seatback. Refer to SEAT BACK REPLACEMENT - REAR (NON -- FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.

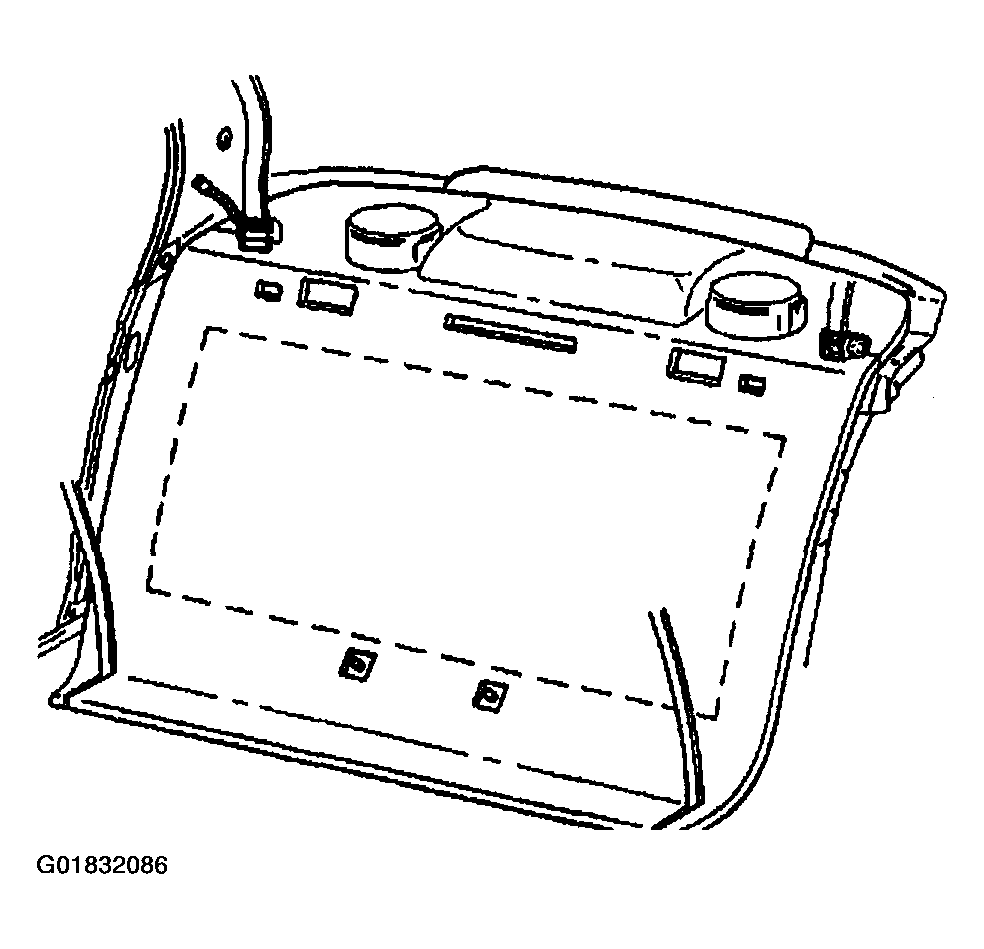

    Fig 1: Lifting Rear Seatback Sound Barrier From Rear Seatback Reinforcement Panel
    G01832086Courtesy of GENERAL MOTORS CORP.
  4. Lift the rear seatback sound barrier from the rear seatback reinforcement panel.
  5. Remove the sound barrier from the vehicle.
