Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seatback sound barrier to the rear seatback reinforcement panel.
  2. Install the rear window trim panel. Refer to Trim Panel Replacement - Rear Window Shelf .
  3. Install the rear seatback. Refer to SEAT BACK REPLACEMENT - REAR (NON - FOLDING)SEAT BACK REPLACEMENT - REAR (NON - FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) in Seats.

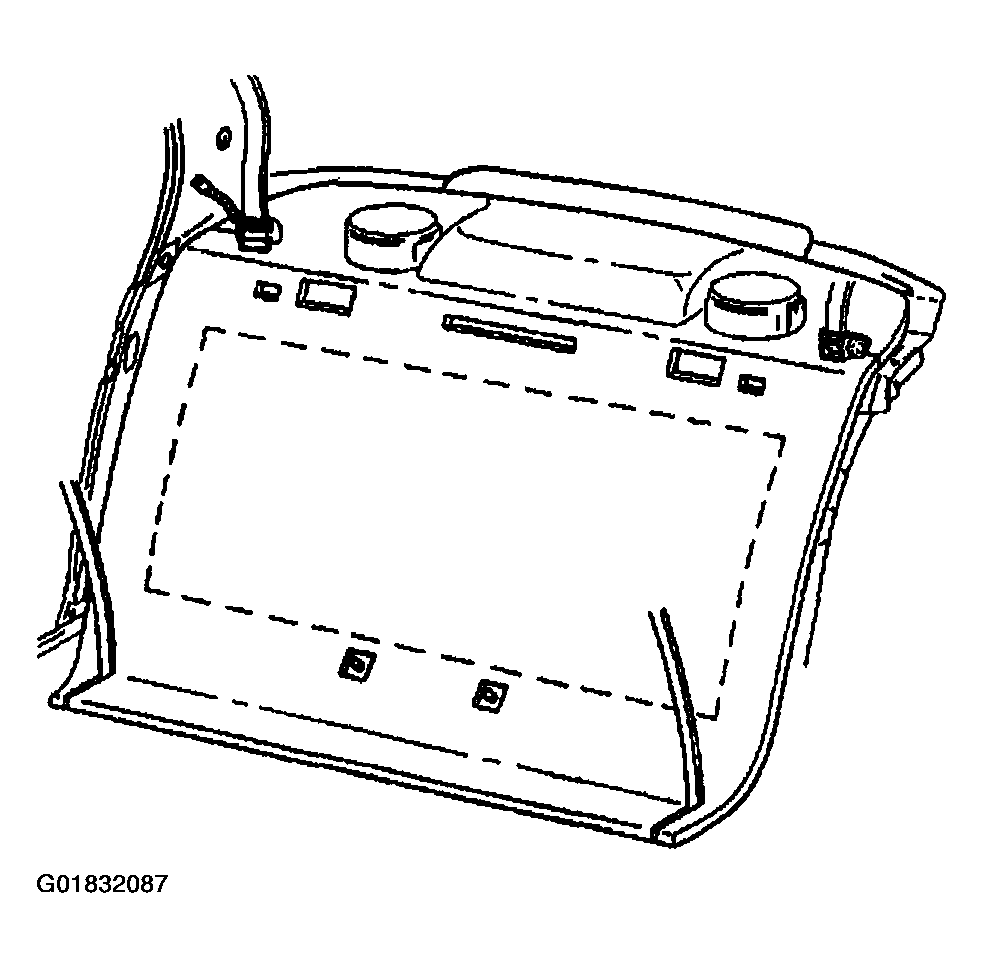

    Fig 1: Installing Rear Seatback Sound Barrier To Rear Seatback Reinforcement Panel
    G01832087Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
