Removal Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

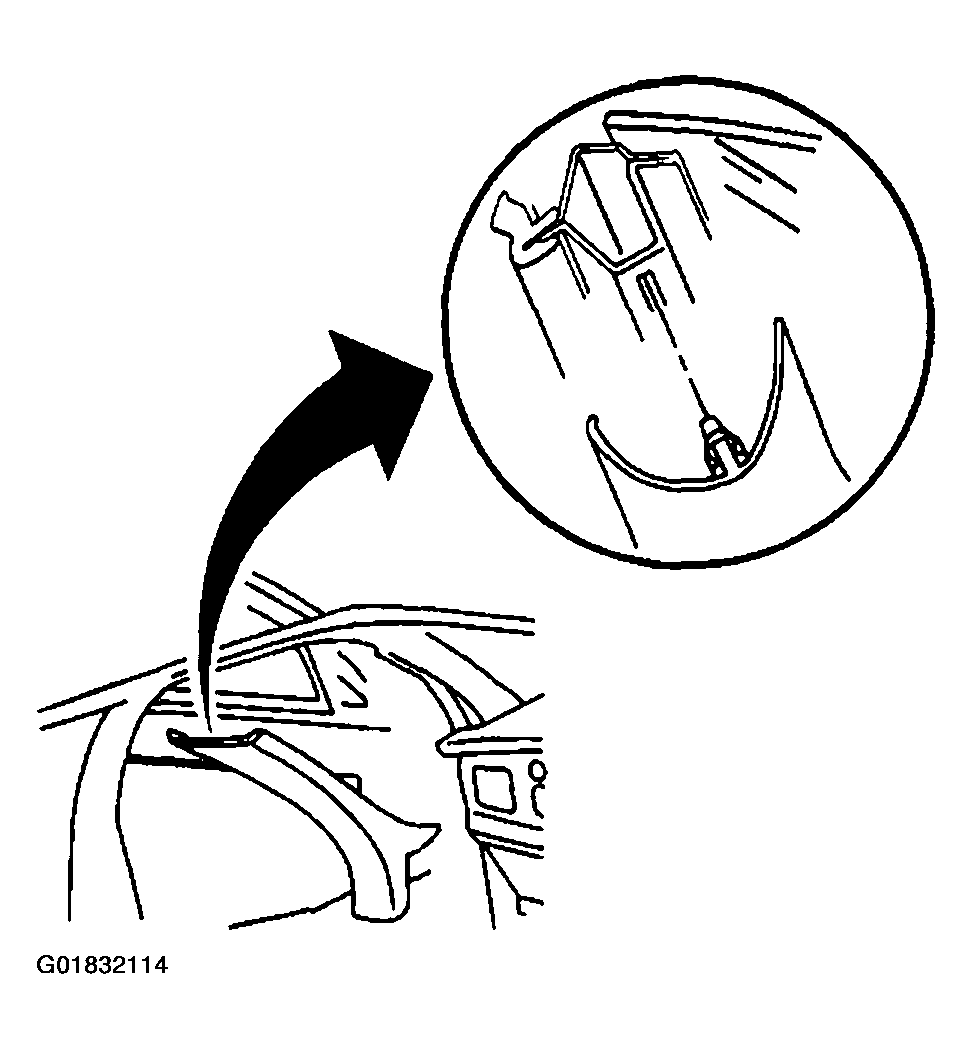

- Pull the front door weatherstrip from the pinchweld flange to expose the garnish molding.
- Disengage the retaining retainers to remove the molding.
- Remove the molding from the car.
Courtesy of GENERAL MOTORS CORP.
