Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the retaining retainers to install the molding.
  2. Press the weatherstrip back onto the pinchweld flange.

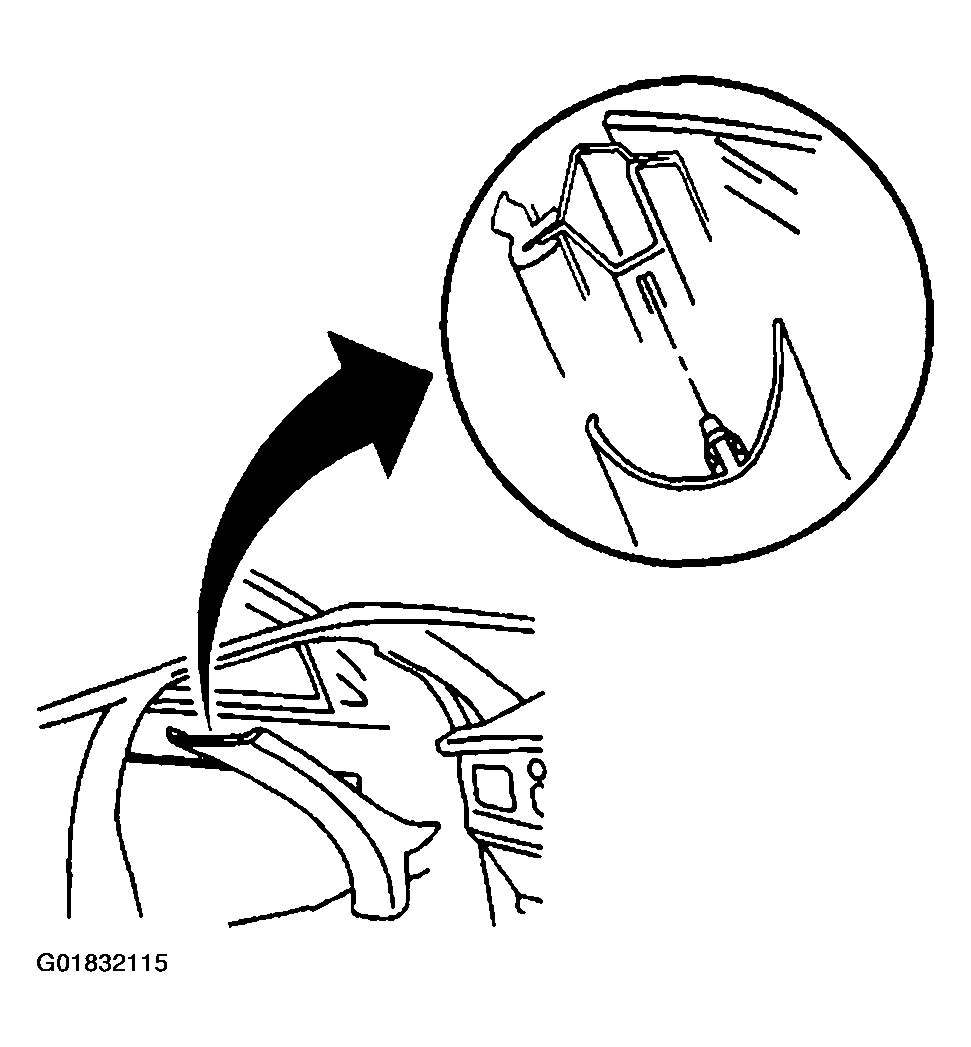

    Fig 1: Installing Molding & Retainers
    G01832115Courtesy of GENERAL MOTORS CORP.
