Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console (1) Refer to Console Replacement - Overhead .
  2. Lower the headliner to access the bezel retainer. Refer to Headliner Replacement .

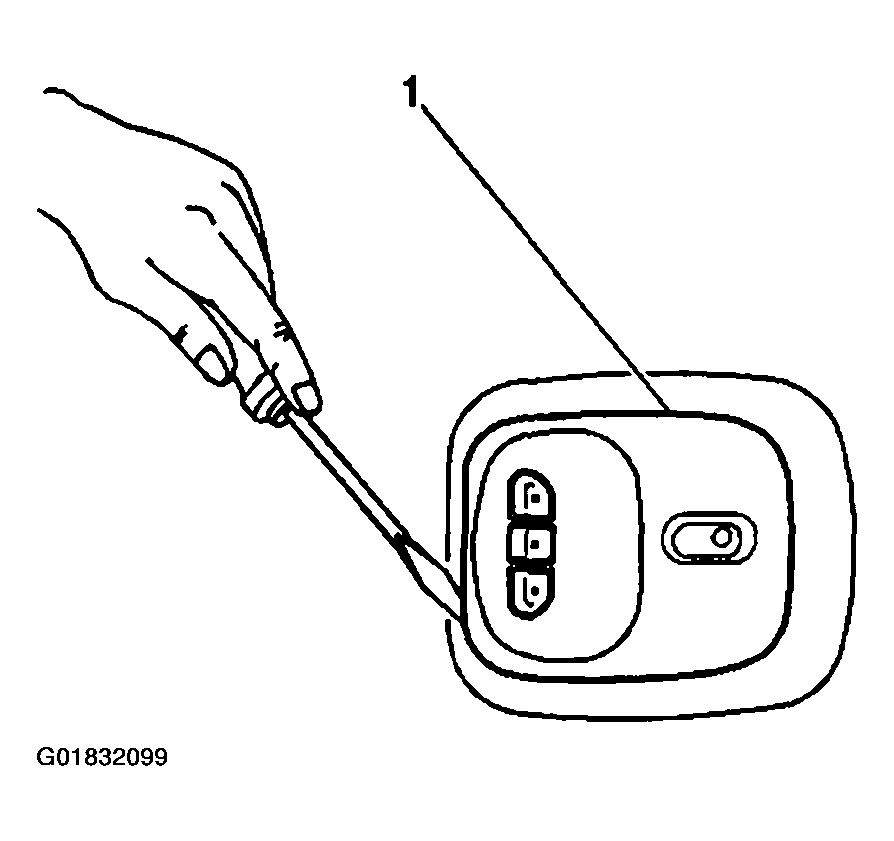

    Fig 1: Removing Overhead Console
    G01832099Courtesy of GENERAL MOTORS CORP.
  3. Remove the bezel retainer screws.
  4. Remove the bezel and remove the bezel retainer from the headliner.
    Fig 2: Removing Bezel, Bezel Retainer & Retaining Screws
    G01832100Courtesy of GENERAL MOTORS CORP.
