Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bezel and the bezel retainer on the headliner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining screws to the overhead console bezel.

    Tighten

    Tighten the retaining screws to 3 N.m (27 lb in).

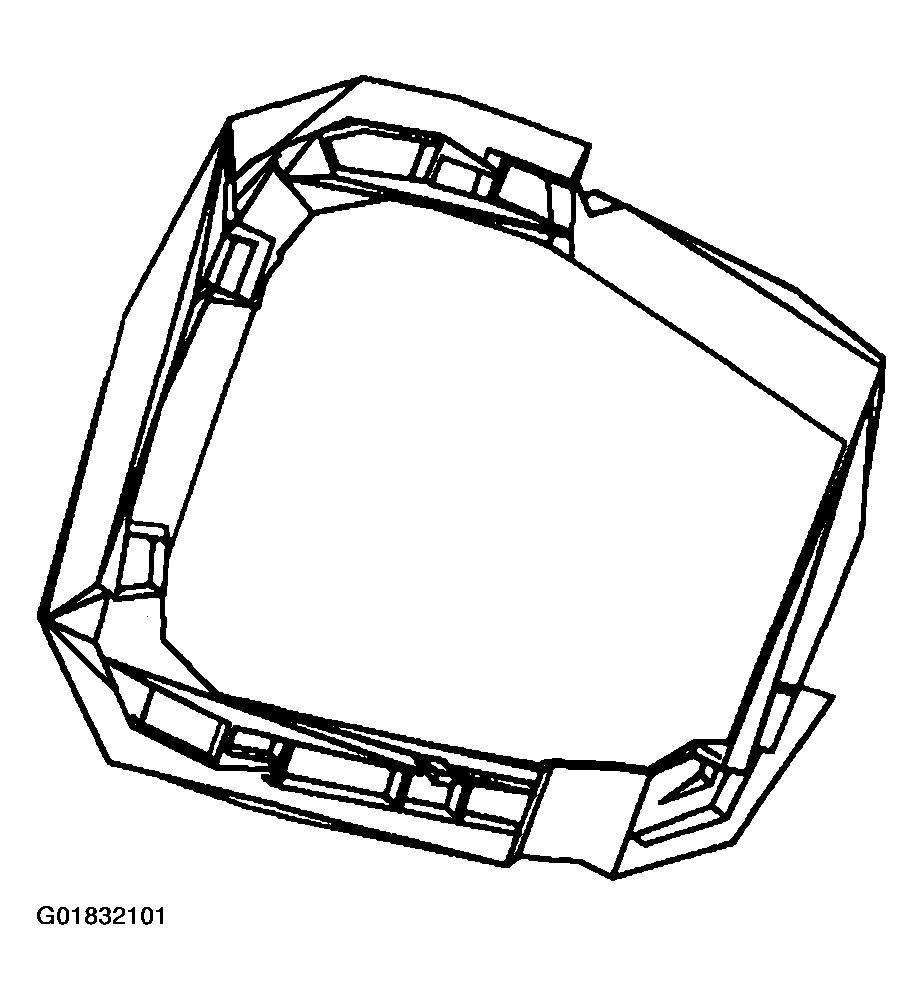

    Fig 1: Installing Bezel, Bezel Retainer & Retaining Screws
    G01832101Courtesy of GENERAL MOTORS CORP.
  3. Install the headliner. Refer to Headliner Replacement .
  4. Install the overhead console. Refer to Console Replacement - Overhead .

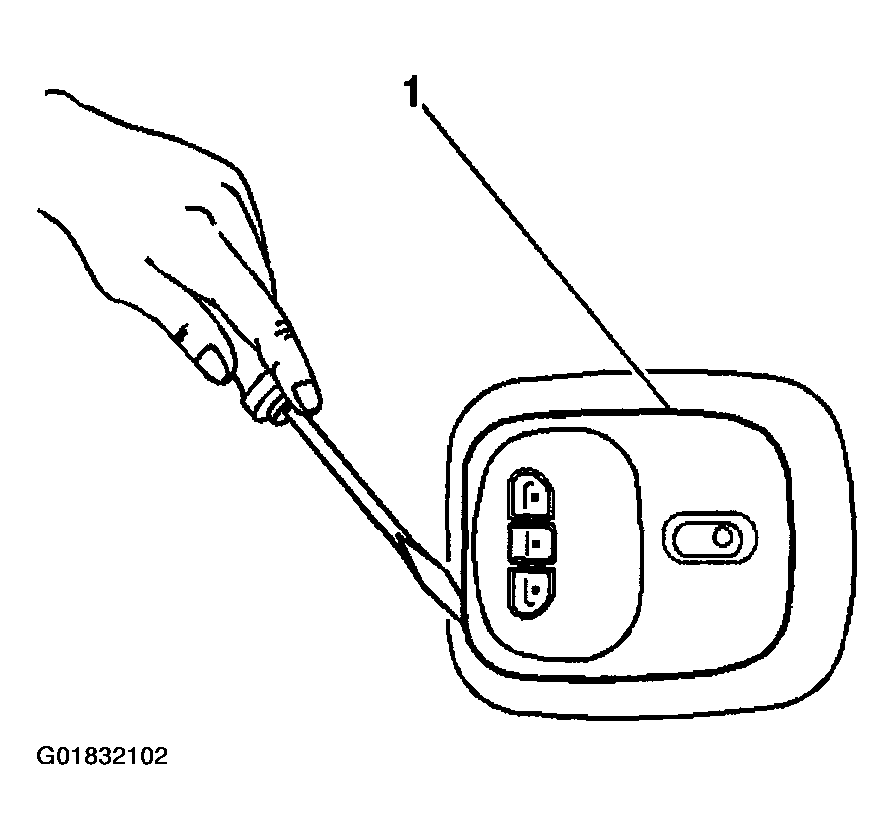

    Fig 2: Installing Overhead Console
    G01832102Courtesy of GENERAL MOTORS CORP.
