Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Use the J 38778 to remove the left and/or right front carpet retainer.

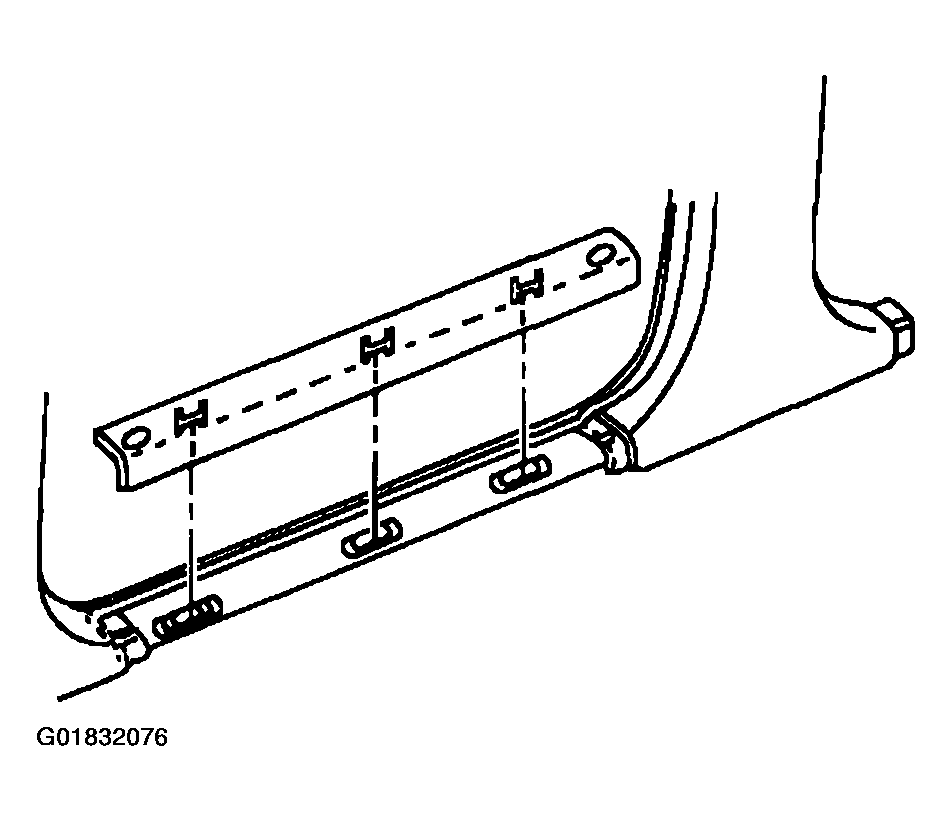

Fig 1: Removing Front Carpet Retainer Using (J 38778)
Courtesy of GENERAL MOTORS CORP.
Use the J 38778 to remove the left and/or right front pillar, lower trim panel.

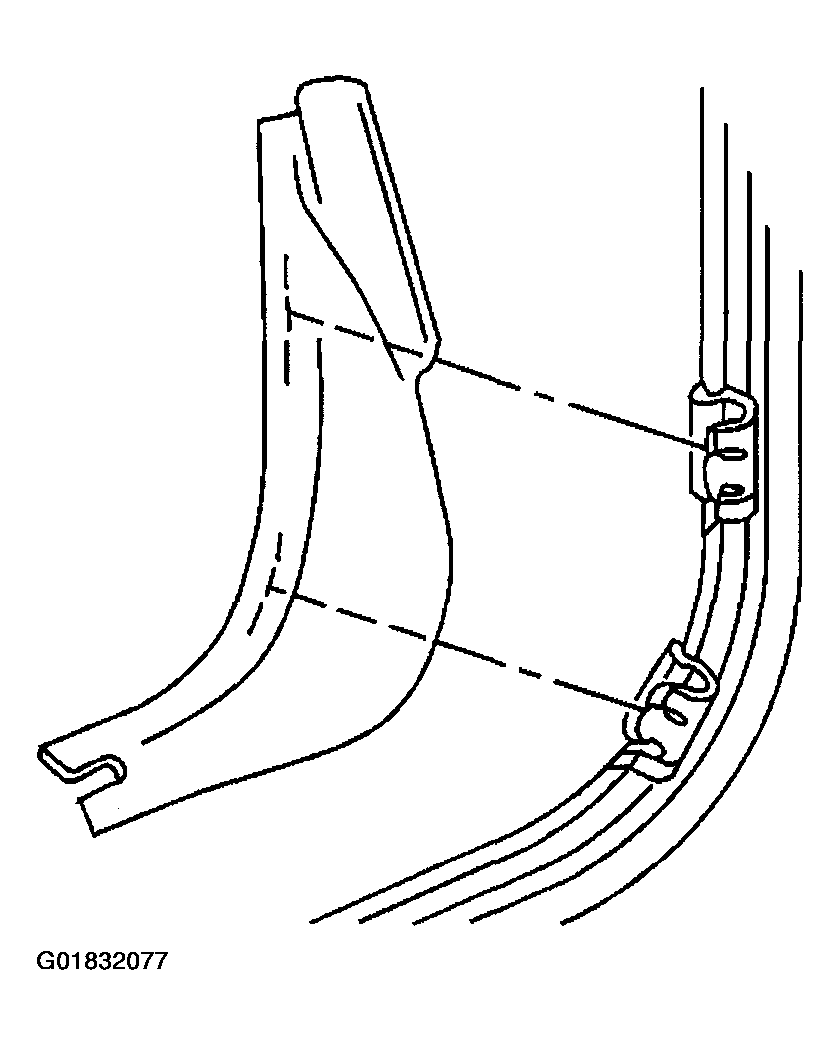

Fig 2: Removing Front Pillar, Lower Trim Panel Using (J 38778)
Courtesy of GENERAL MOTORS CORP.
