Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Install the left and/or right front lower pillar, trim panel. Apply pressure until the panel is fully seated.

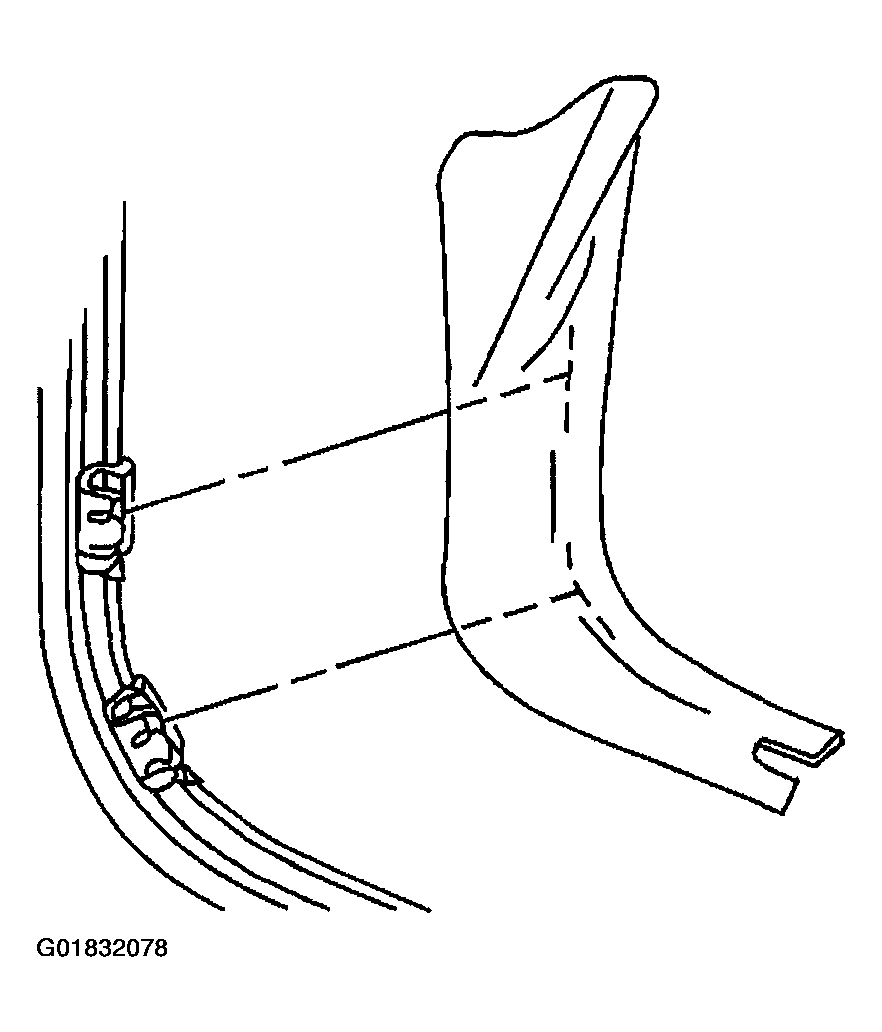

Fig 1: Installing Front Lower Pillar, Trim Panel
Courtesy of GENERAL MOTORS CORP.
Install the left and/or right front door carpet retainer. Apply pressure until the carpet retainer is fully seated.

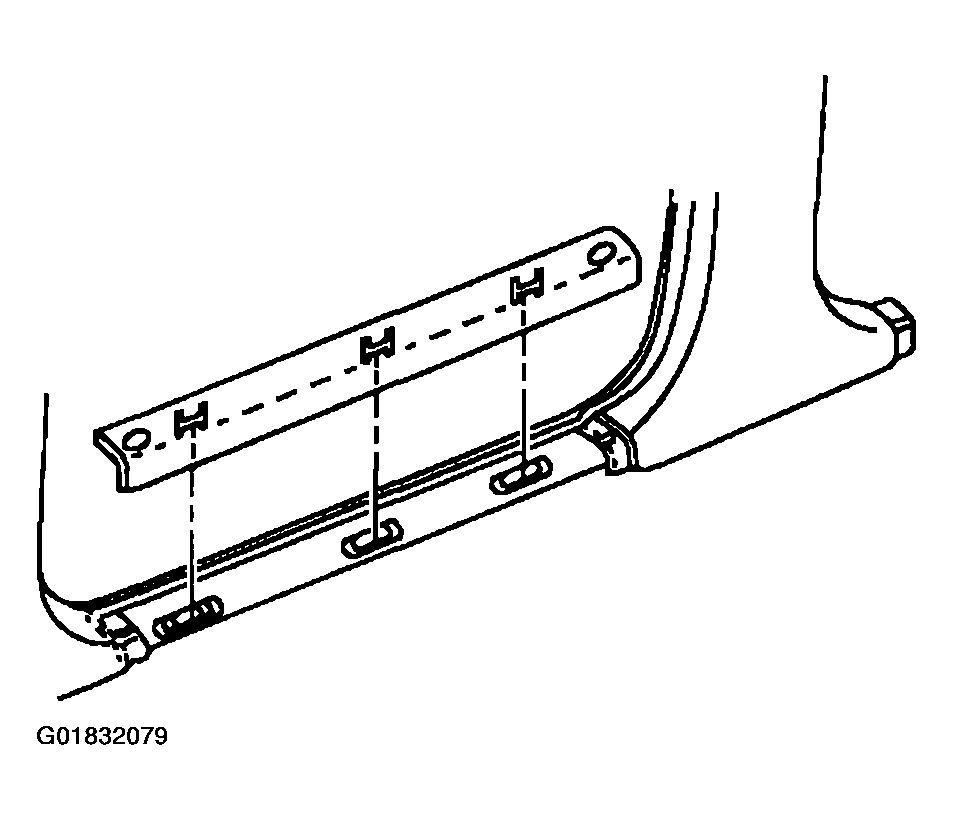

Fig 2: Installing Front Door Carpet Retainer
Courtesy of GENERAL MOTORS CORP.
