Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the assist handle (3) down to expose the retaining screw covers (2).
  2. Lift the covers and remove the retaining screws (1).

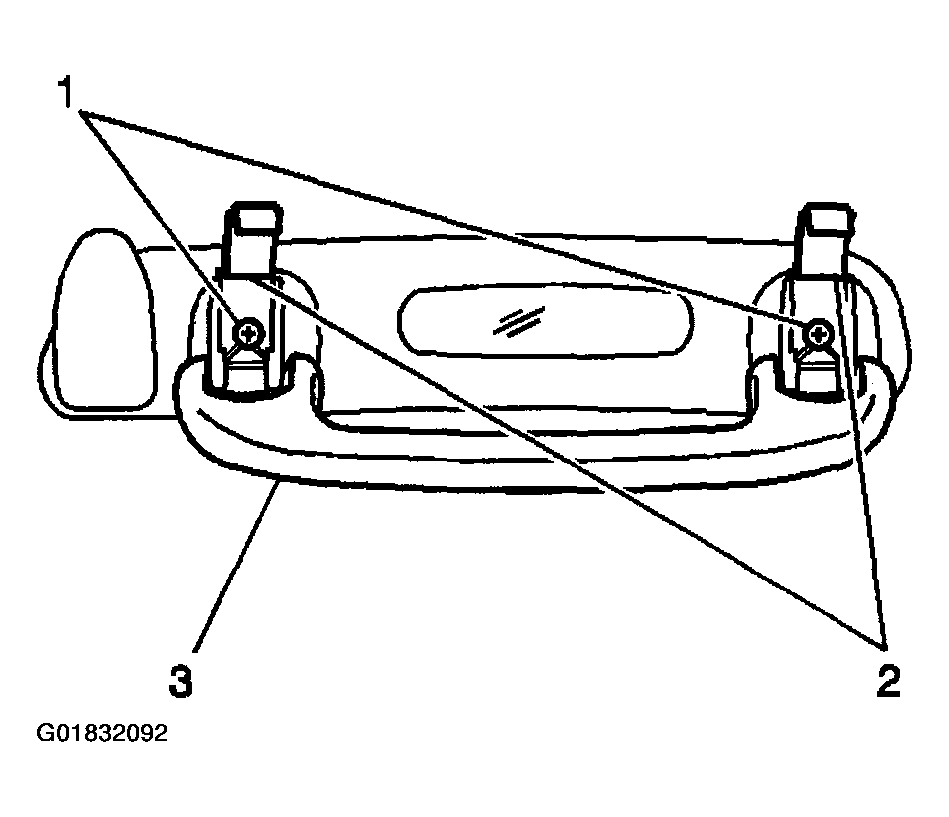

    Fig 1: Removing Retaining Screws
    G01832092Courtesy of GENERAL MOTORS CORP.
  3. Pull the handle and the bezel away from the headliner and disconnect the lamp electrical connector (3).
  4. Remove the assist handle from the vehicle.

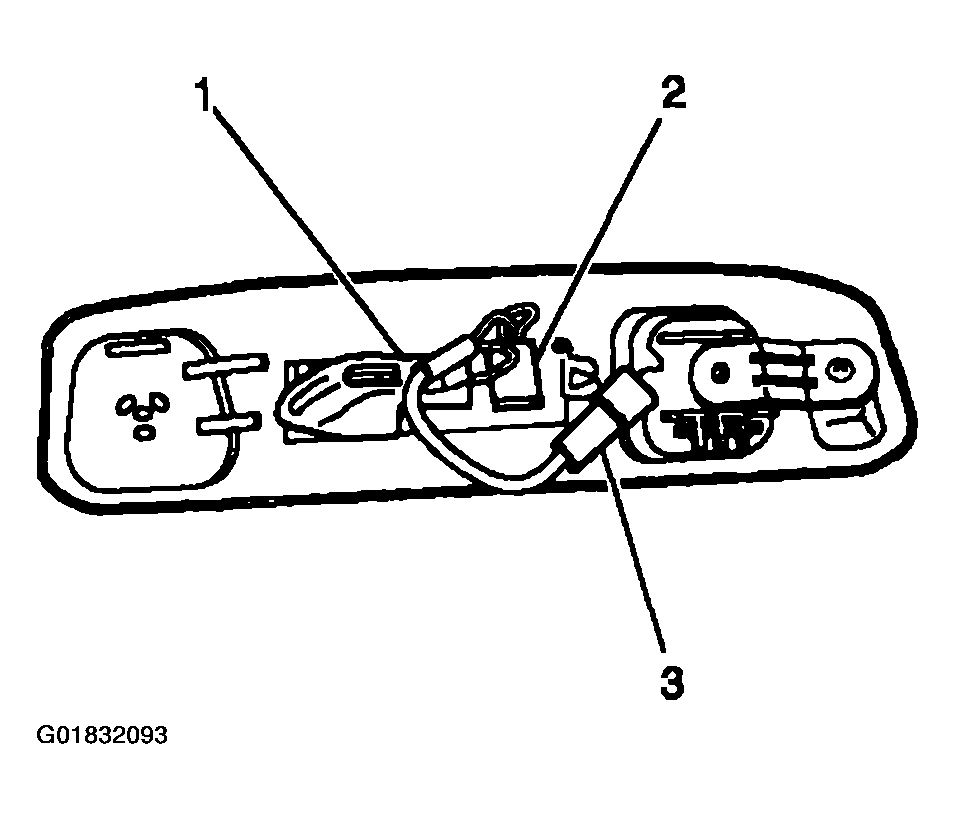

    Fig 2: Removing Lamp Electrical Connector & Assist Handle
    G01832093Courtesy of GENERAL MOTORS CORP.
