Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the assist handle by the headliner.
  2. Connect the lamp electrical connector (3).

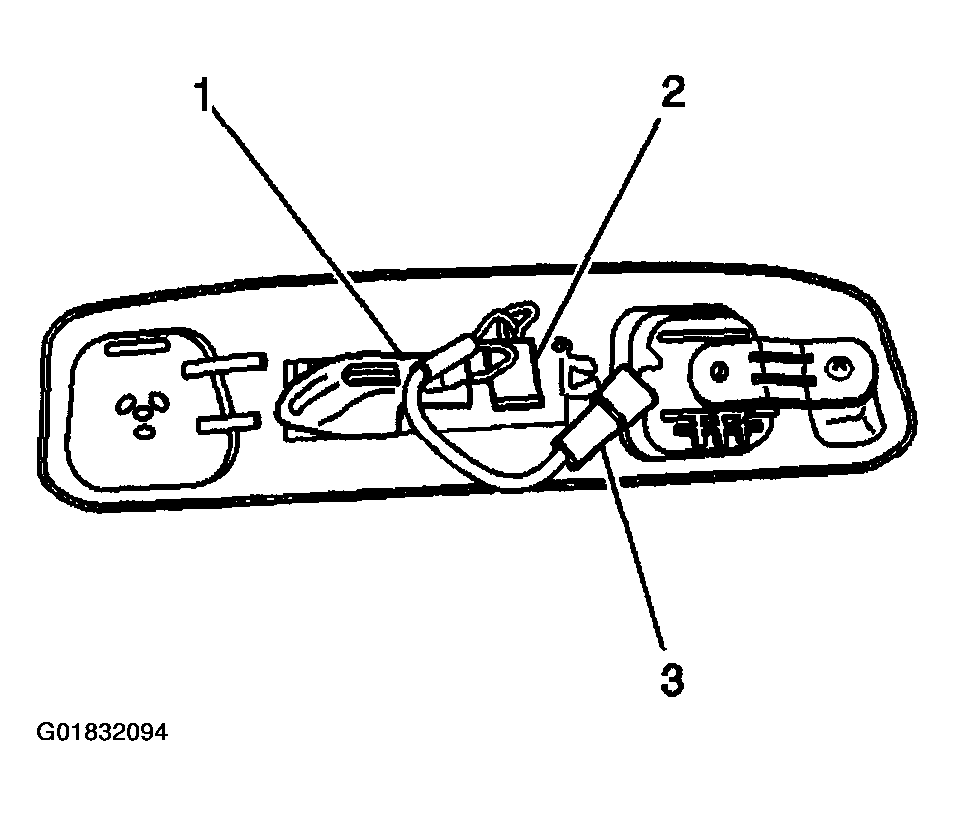

    Fig 1: Installing Assist Handle & Lamp Electrical Connector
    G01832094Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

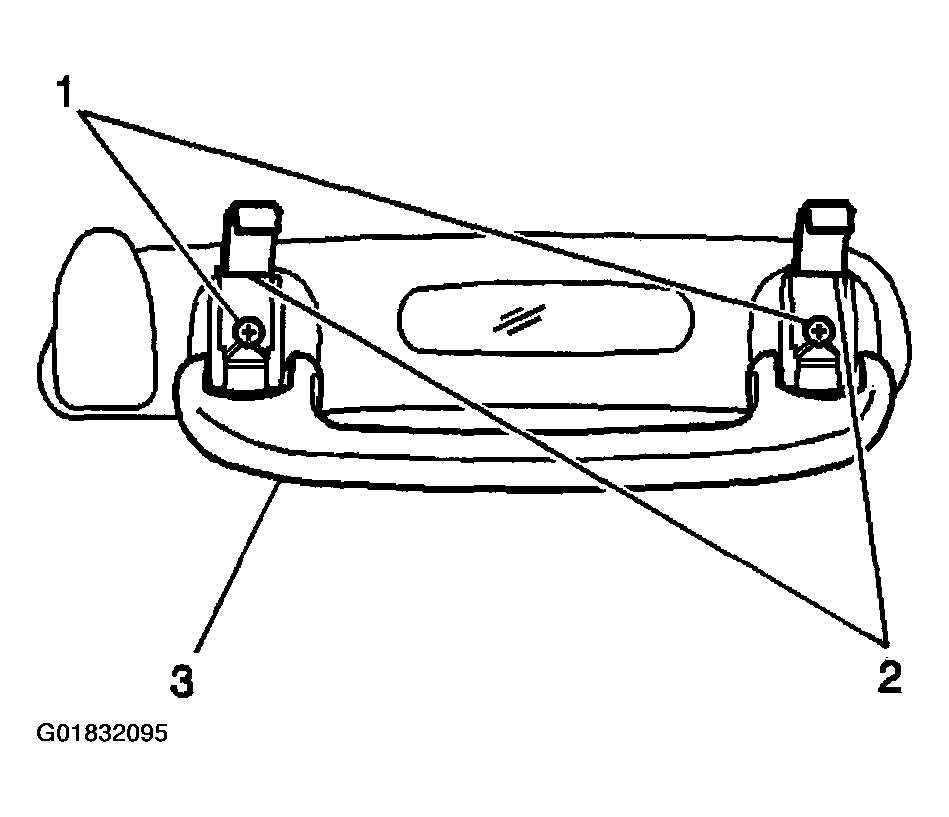

    Fig 2: Installing Assist Handle Retaining Screws
    G01832095Courtesy of GENERAL MOTORS CORP.
  3. Install the assist handle retaining screws (1).

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  4. Close the screw covers (2) and return the handle to the upright position.
