Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down on the assist handle to expose the assist handle to roof retaining screws.
  2. Remove the assist handle to roof retaining screws (1).
  3. Remove the assist handle from the vehicle.

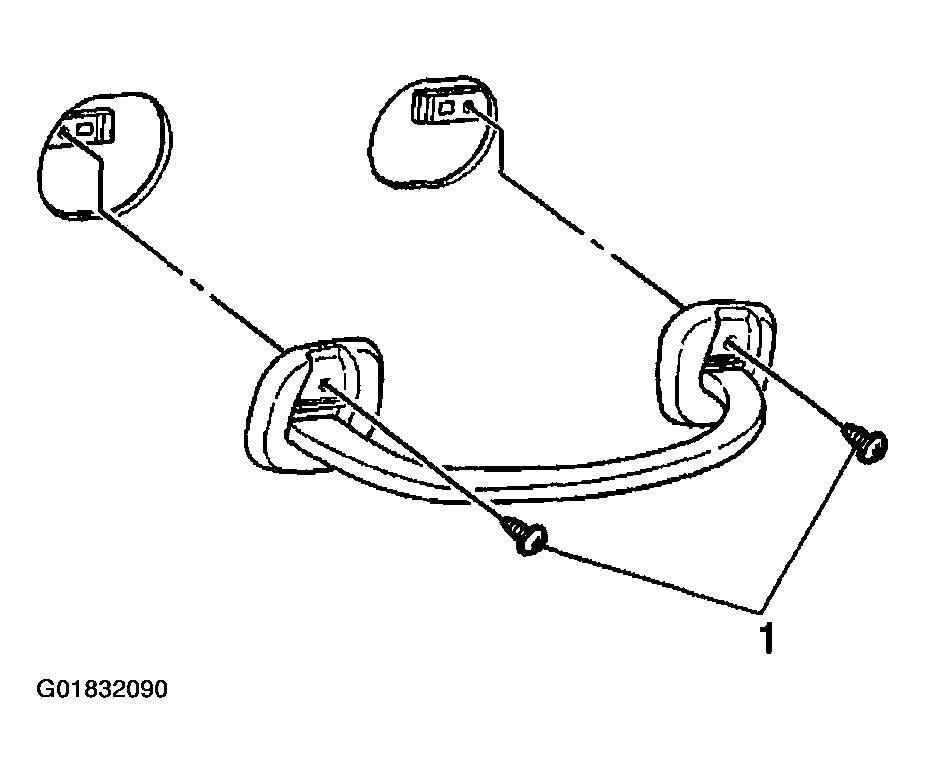

    Fig 1: Removing Assist Handle To Roof Retaining Screws
    G01832090Courtesy of GENERAL MOTORS CORP.
