Power Window Schematics (Front Passenger, and Left Rear)
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

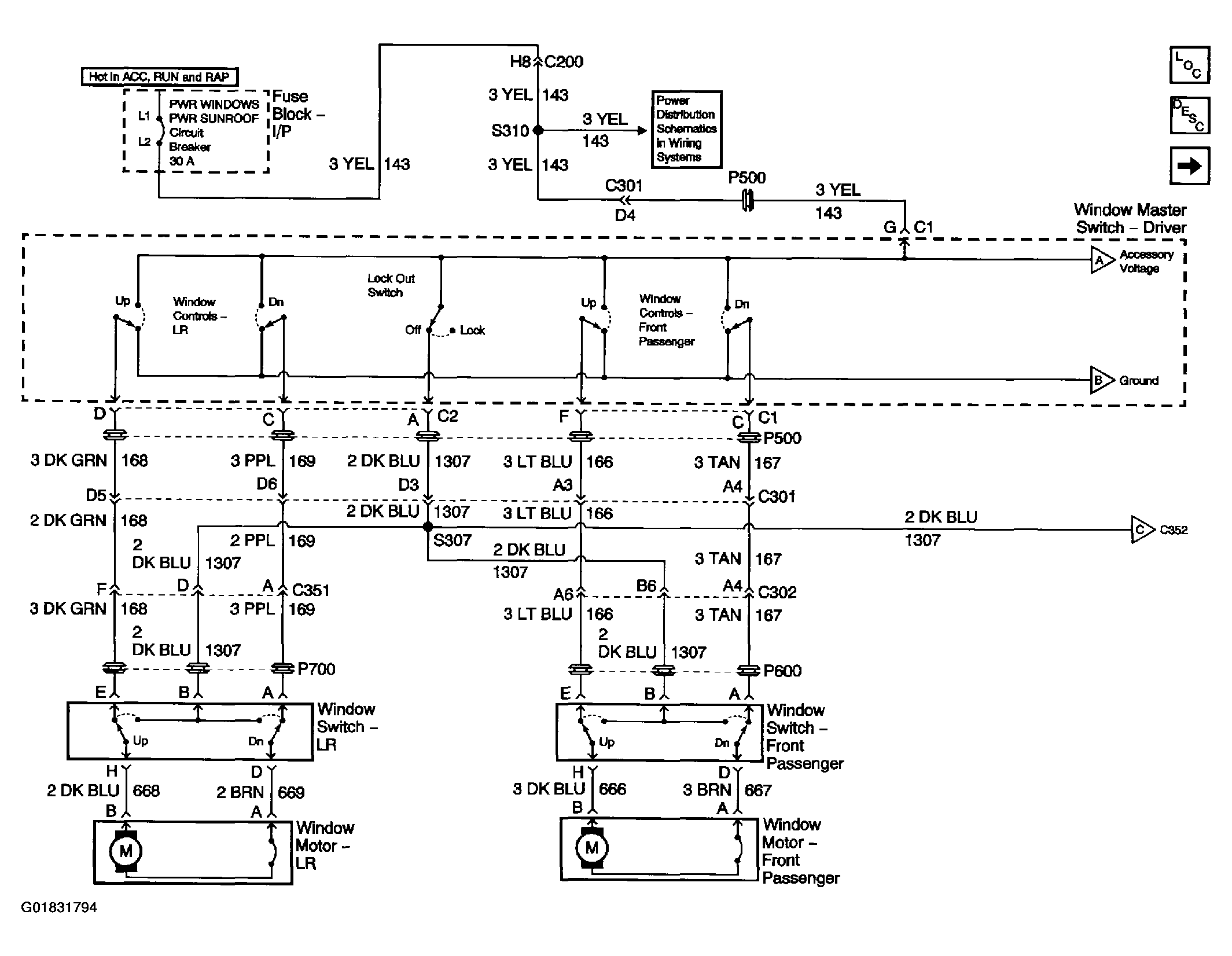

Fig 1: Power Window Schematics (Front Passenger, And Left Rear)
Courtesy of GENERAL MOTORS CORP.

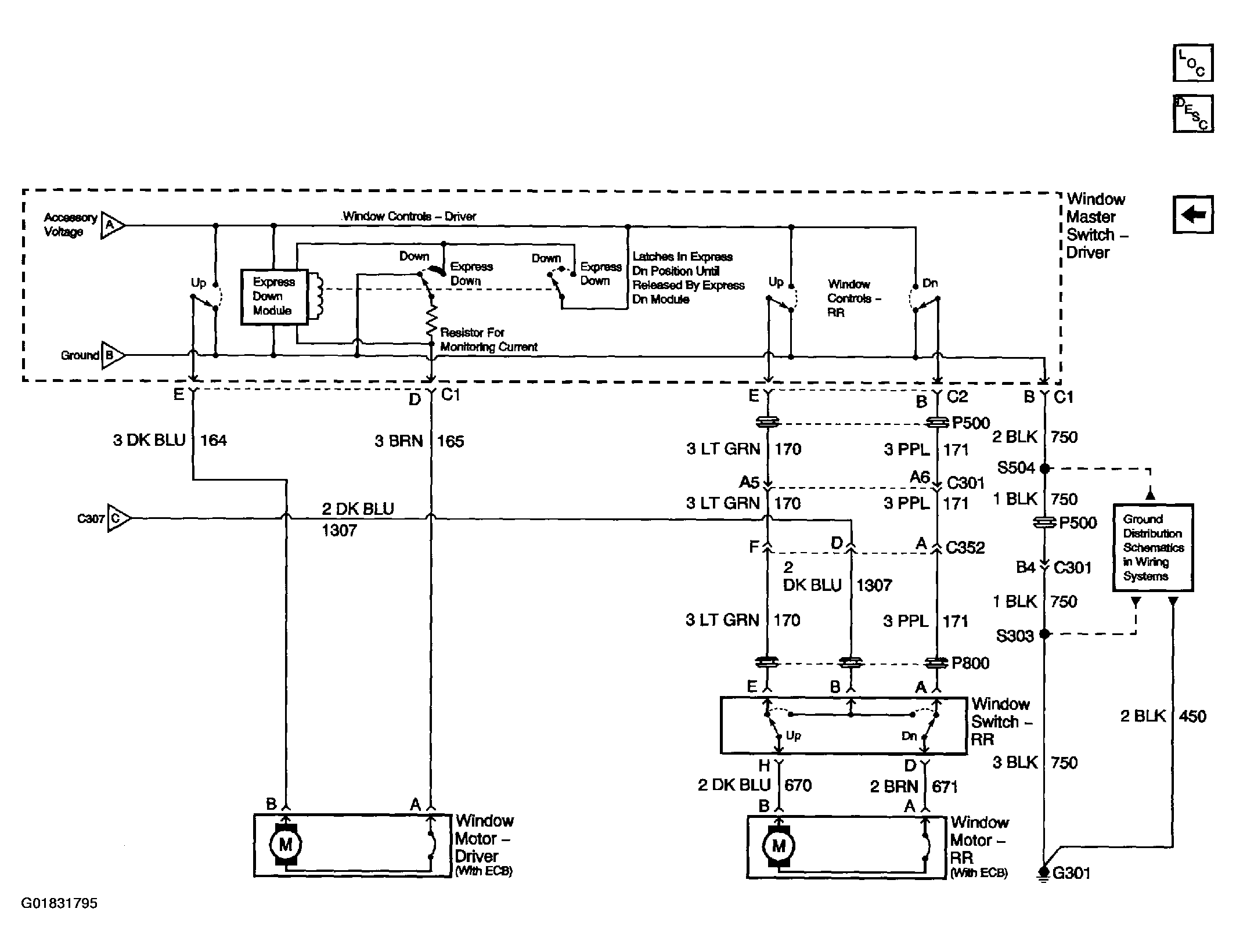

Fig 2: Power Window Schematics (Driver, And Right Rear)
