Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the window half way down.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door
  4. Remove the rear door inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  5. Remove the rear door outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  6. Remove the bolts (1, 2) which secure the window to the window regulator.
  7. Rotate the window and remove the rear door window from the rear door.

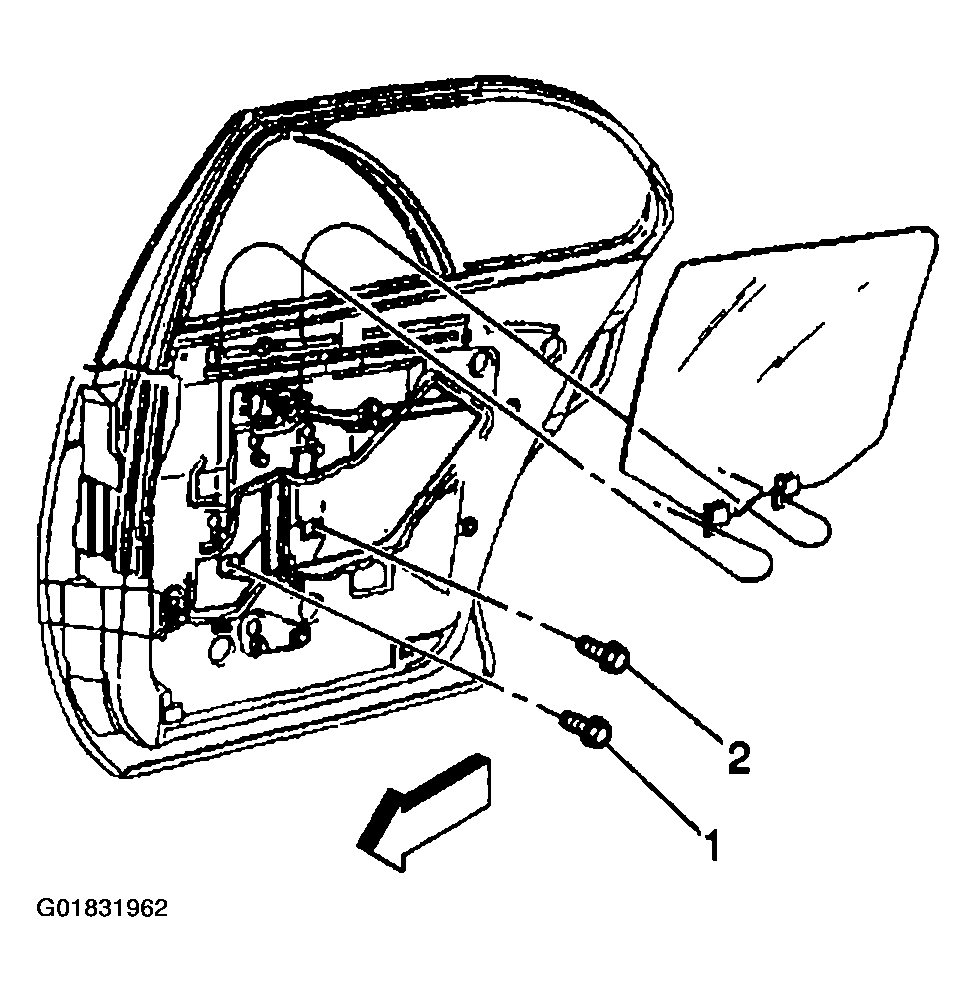

    Fig 1: Removing Bolts Which Secure The Window To Window Regulator
    G01831962Courtesy of GENERAL MOTORS CORP.
