Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the window half way down.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the front door inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  5. Remove the window to window regulator bolts (1,2).

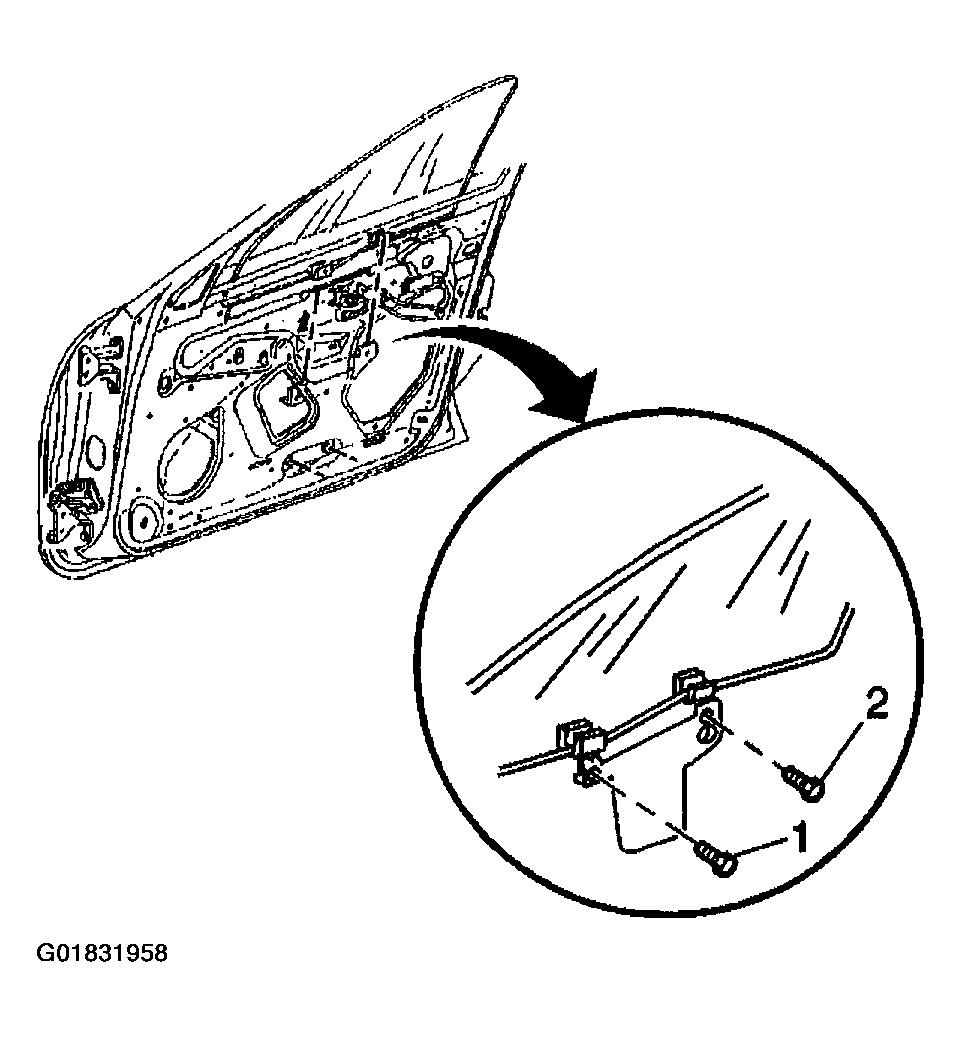

    Fig 1: Window To Window Regulator Bolts
    G01831958Courtesy of GENERAL MOTORS CORP.
  6. Rotate the window and remove the front door window from the front door.

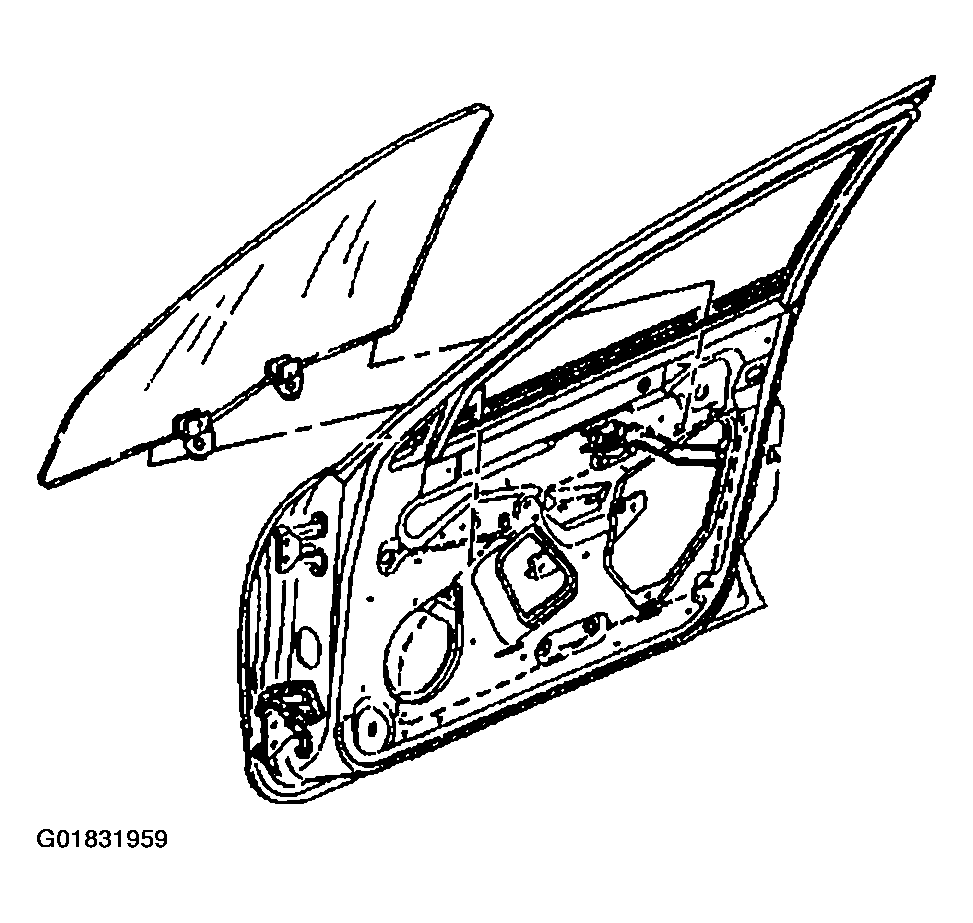

    Fig 2: Removing Front Door Window From Front Door
    G01831959Courtesy of GENERAL MOTORS CORP.
