Adjustment Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door or Trim Panel Replacement - Side Rear Door
- Remove the water deflector. Refer to Water Deflector Replacement - Front Door or Water Deflector Replacement - Rear Door .

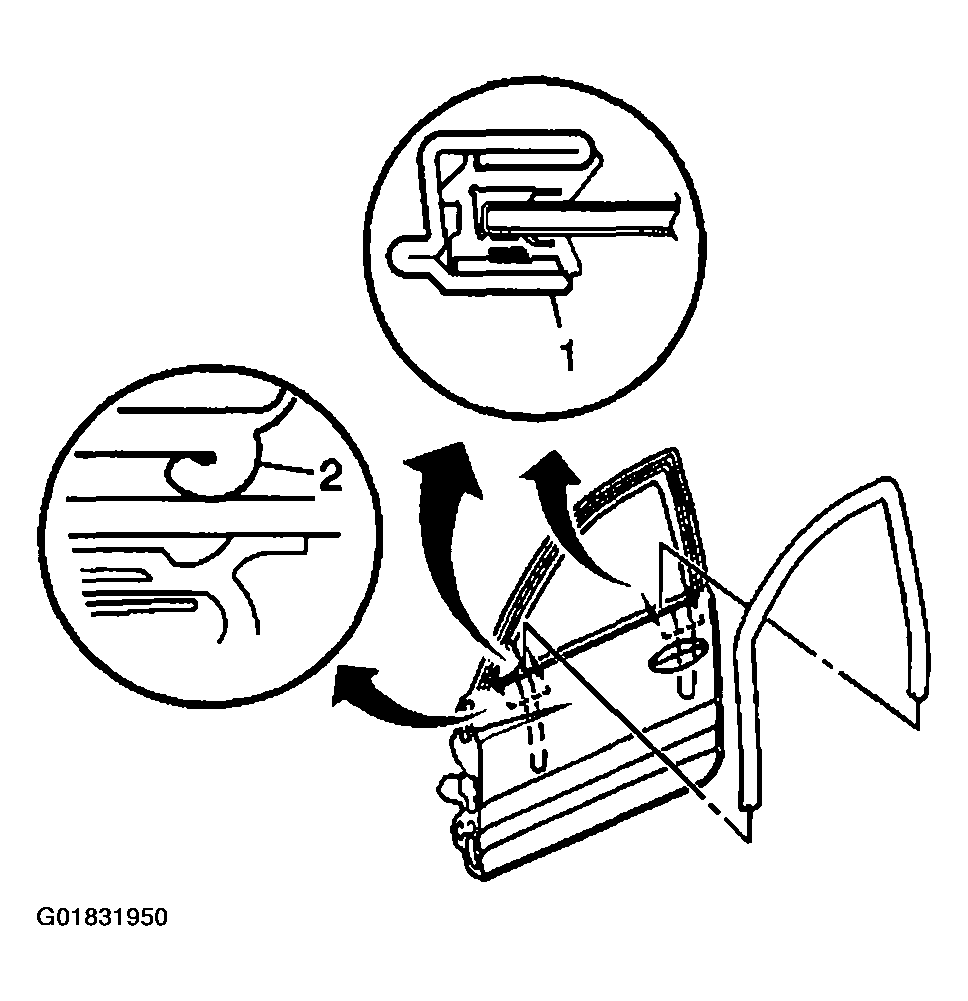

- Condition 1.1: Using a flat-bladed tool, straighten the run channel lip (2) by pulling the lip out to its correct position.
- Condition 1.2: Using a flat-bladed tool push the run channel rearward seating the channel in the door frame.

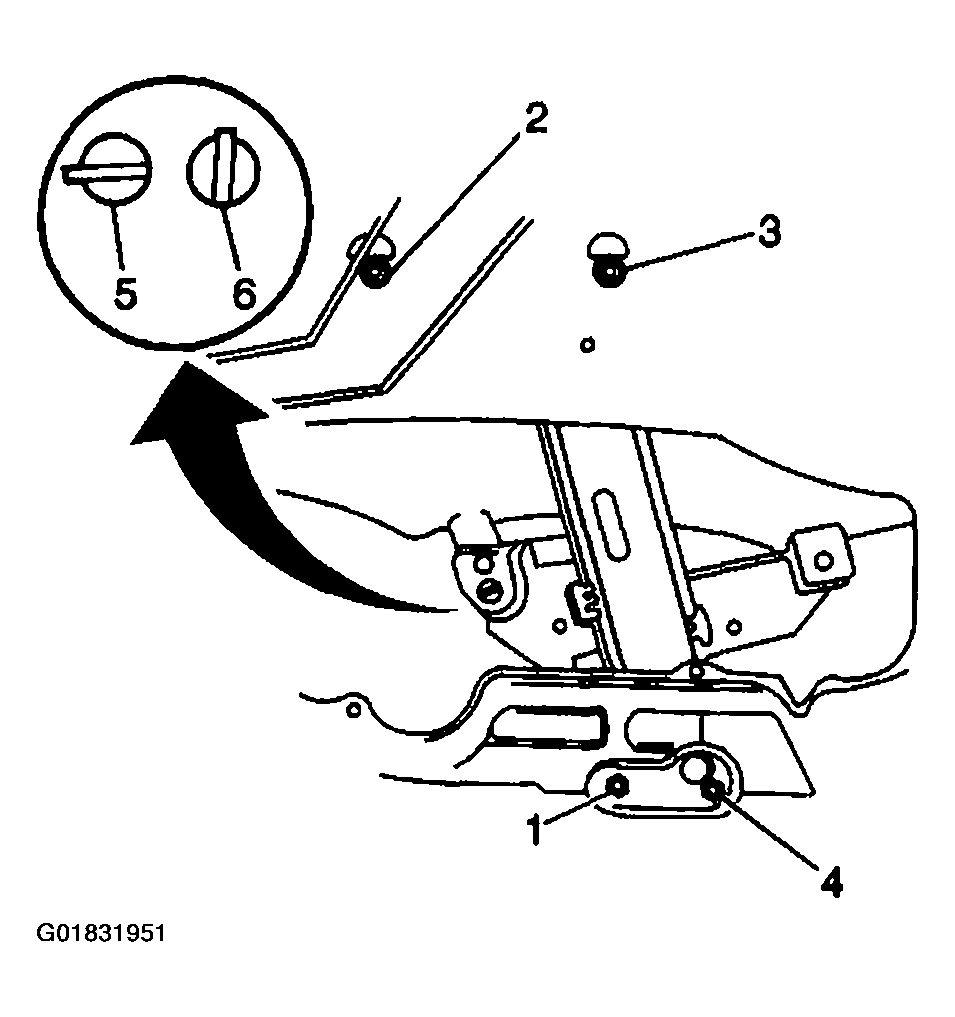

- Condition 1.3: Loosen the window-to-window regulator bolts.
Rotate the cam (5) on the window regulator plate so that the slot (6) is straight up and down. In this position, the back of the window will tilt forward.
NOTE: Refer to FASTENER NOTICE . - Tighten the window to regulator bolts.
Tighten
Tighten the bolts to 10 N.m (89 lb in).
- Condition 1.4: Loosen the window-to-regulator bolts (1,2).

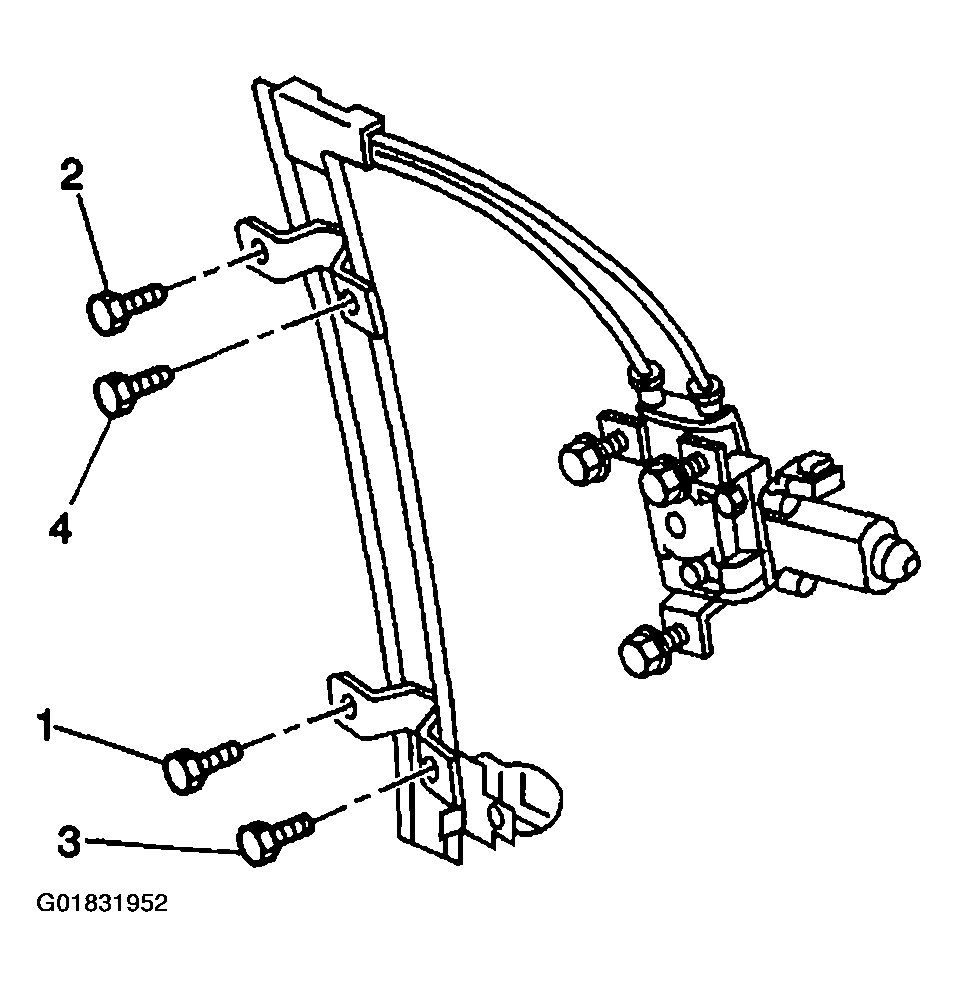

- Loosen the four window regulator to door bolts.
- Align the window regulator.
- Tighten the bolts which secure the window regulator to the door according to the tightening sequence: 1, 2, 3, 4.
Tighten
Tighten the bolts to 10 N.m (89 lb in).

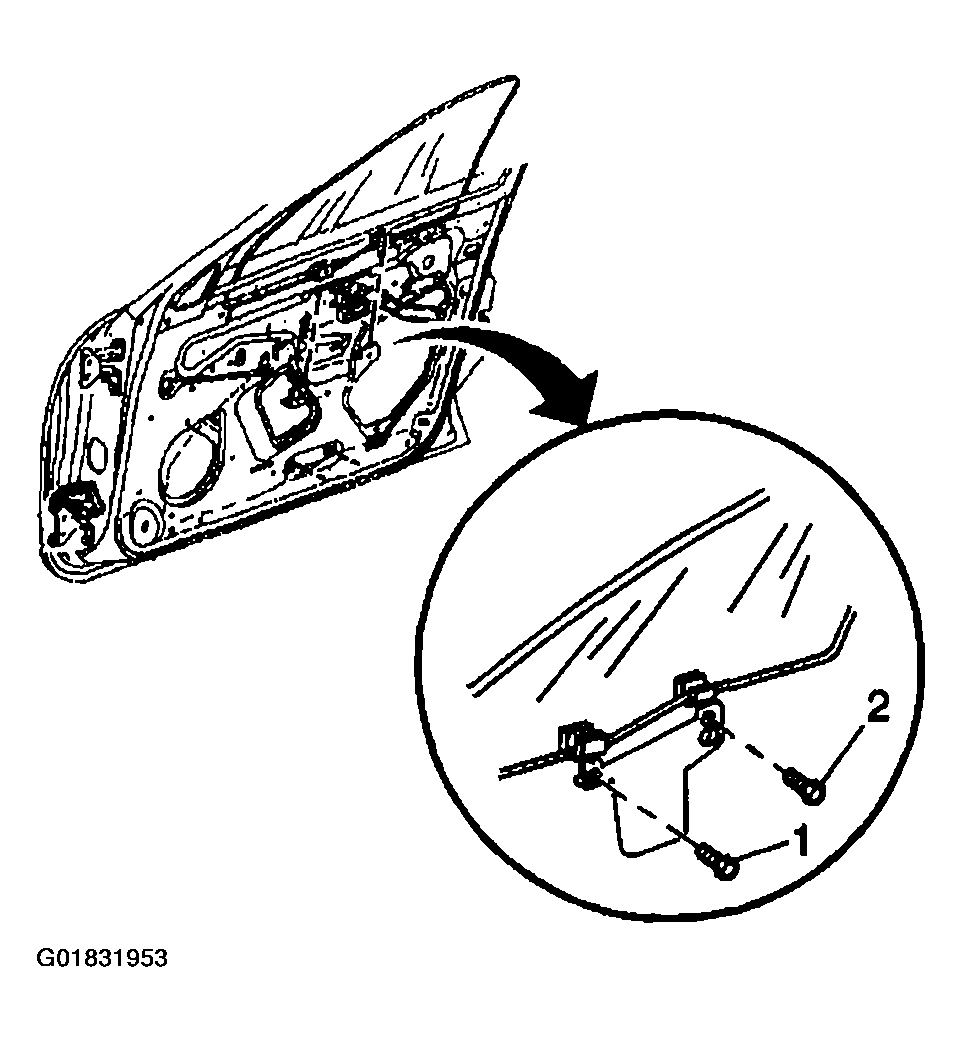

- Tighten the regulator motor to door bolts (1, 2) which secure the window-to-window regulator to the window.
Tighten
Tighten the bolts to 10 N.m (89 lb in).
- Connect the power window switch.
- Test the power window for proper operation.
- Install the door water deflector. Refer to Water Deflector Replacement - Front Door or Water Deflector Replacement - Rear Door .
- Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door or Trim Panel Replacement - Side Rear Door .
