Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glass run channel in the area of the rear door weatherstrip retainer.
  2. Remove the rear door outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  3. Remove the rear door stationary window. Refer to Window Replacement - Rear Door Stationary .
  4. Remove the screw which secures the weatherstrip retainer for the rear door window to the rear door.
  5. Use a small flat-bladed tool in order to remove the rear door window weatherstrip retainer from the rear door while pulling the rear door window weatherstrip upward.
  6. Remove the rear door window weatherstrip retainer from the rear door.

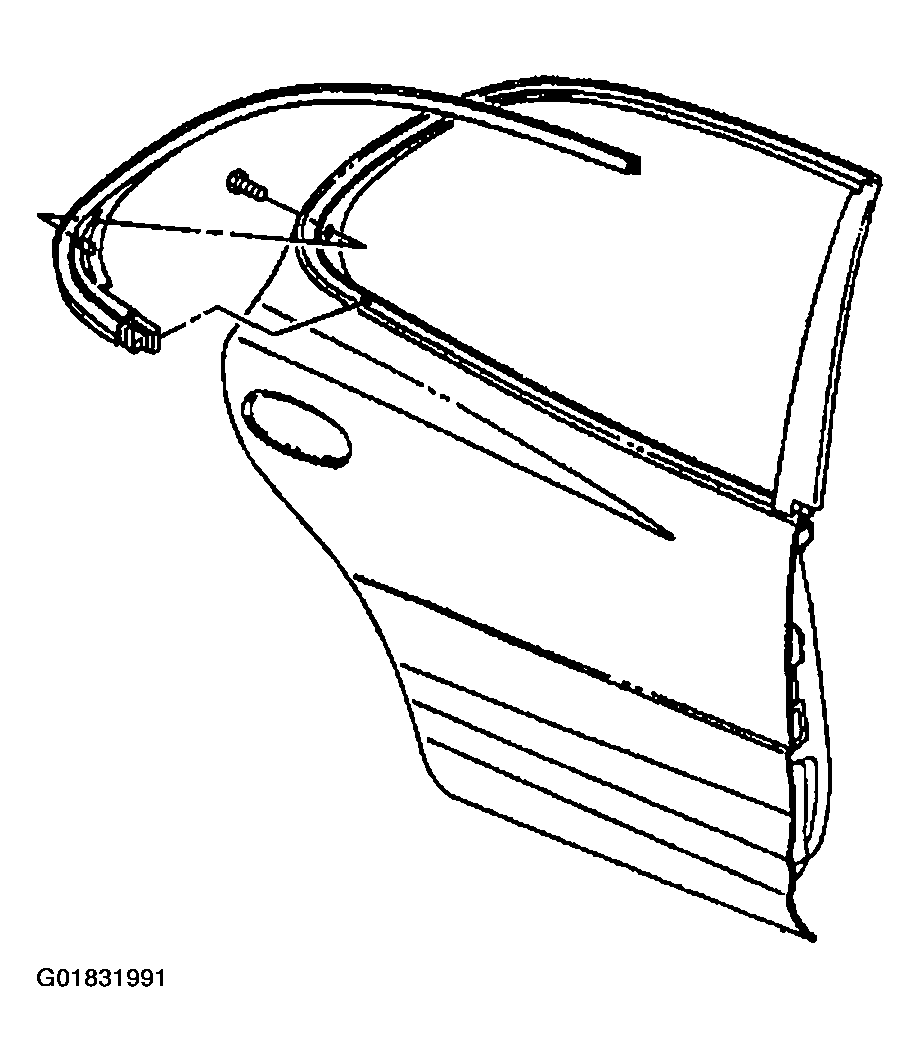

    Fig 1: Removing Rear Door Window Weatherstrip Retainer & Screws
    G01831991Courtesy of GENERAL MOTORS CORP.
