Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Open the rear door.
Use the J 38778 to remove the lower half of the rear door weatherstrip and retainers.
Pull the rear door weatherstrip from the track to remove the upper half of the rear door weatherstrip.
Remove the rear door weatherstrip from the rear door.

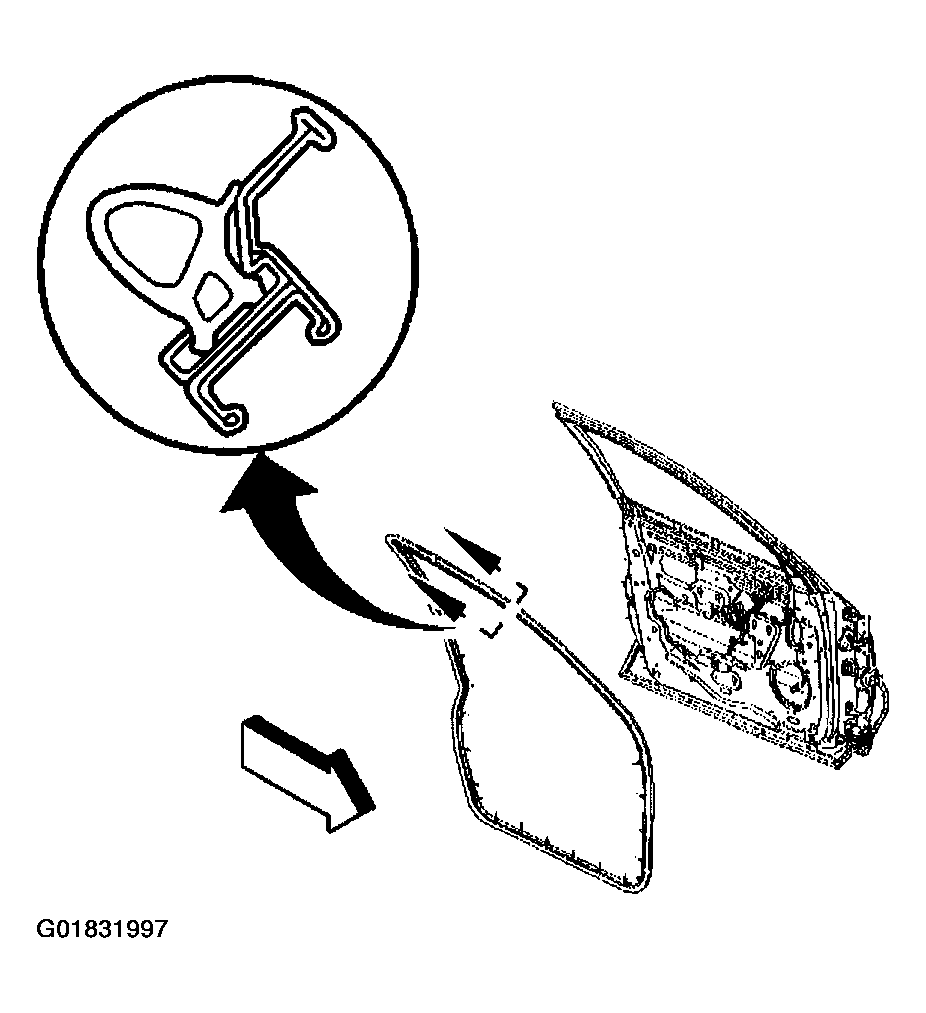

Fig 1: Removing Rear Door Weatherstrip From Rear Door
Courtesy of GENERAL MOTORS CORP.
