Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the rear door window to the full down position.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the rear door inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  5. Pull the rear door window weatherstrip from the rear door.

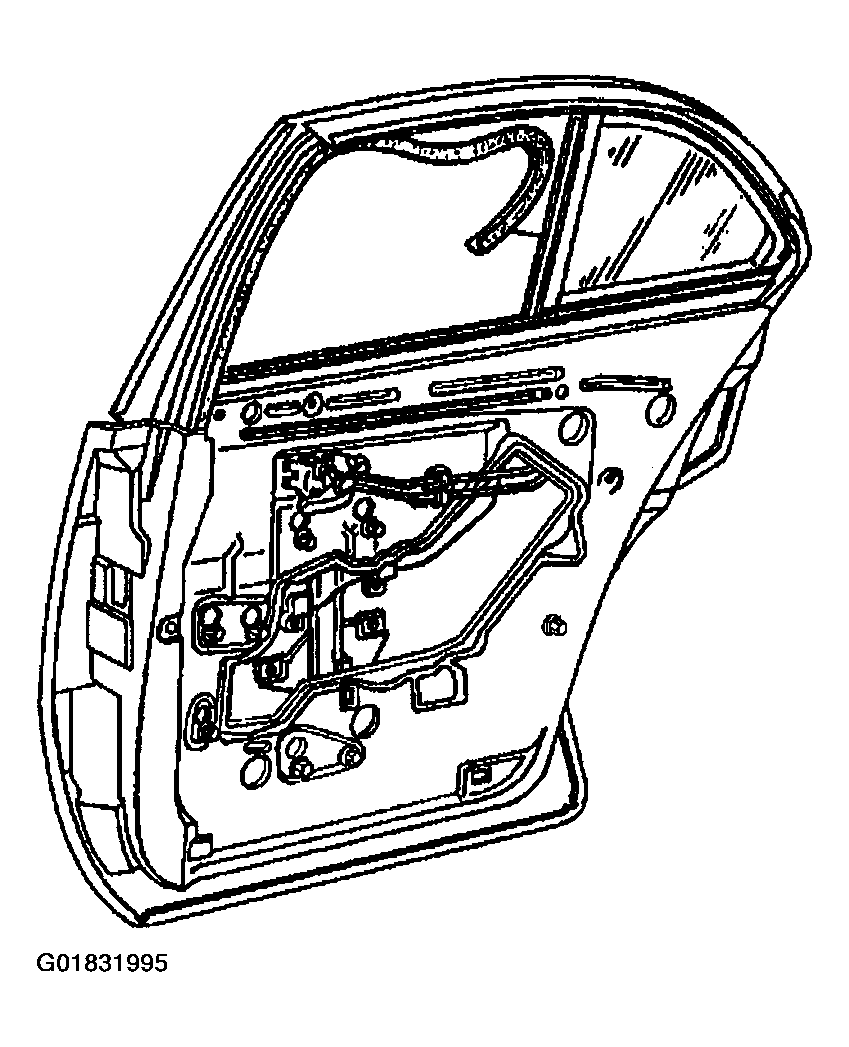

    Fig 1: Removing Rear Door Window Weatherstrip From Rear Door
    G01831995Courtesy of GENERAL MOTORS CORP.
