Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear carpet retainers. Refer to CARPET RETAINER REPLACEMENT - REAR .
  2. Remove the lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .

    Remove the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .

  3. Remove the rear door weatherstrip from the pinch-weld flange.

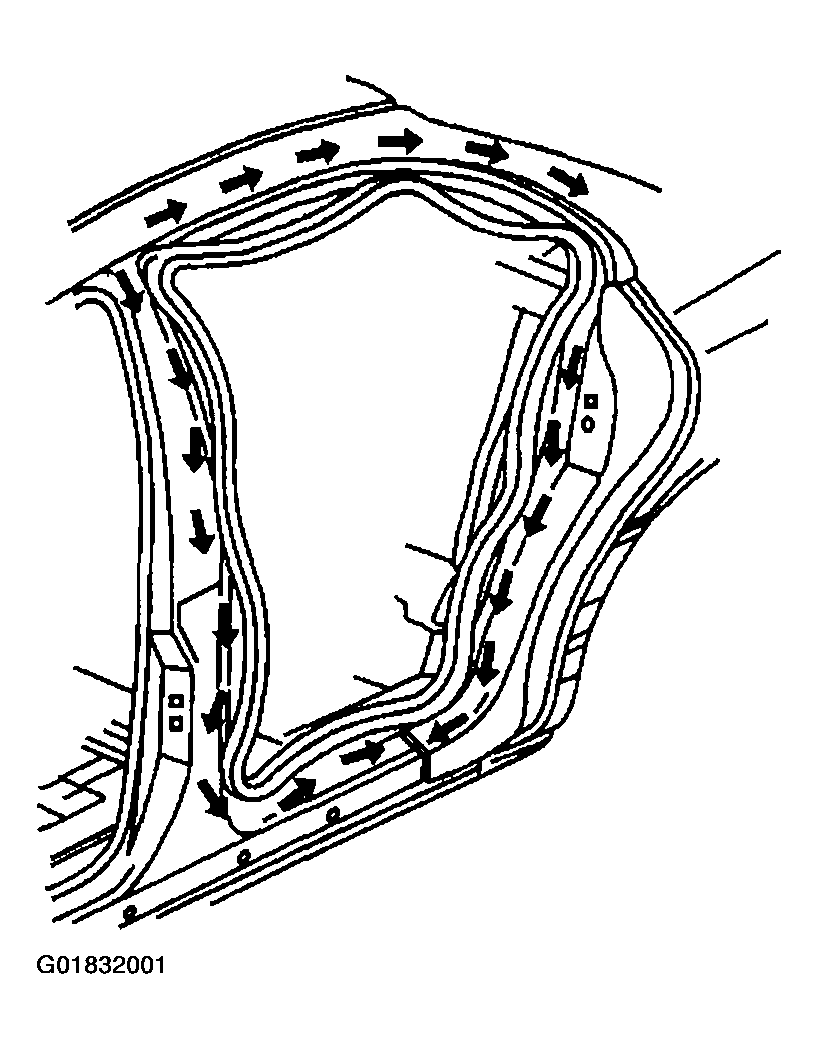

    Fig 1: Removing Rear Door Weatherstrip From Pinch-Weld Flange
    G01832001Courtesy of GENERAL MOTORS CORP.
