Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Use the J 38778  to remove the lower half of the front door weatherstrip and retainers.
  3. Pull the front door weatherstrip from the track to remove the upper half of the front door weatherstrip.
  4. Remove the front door weatherstrip from the front door.

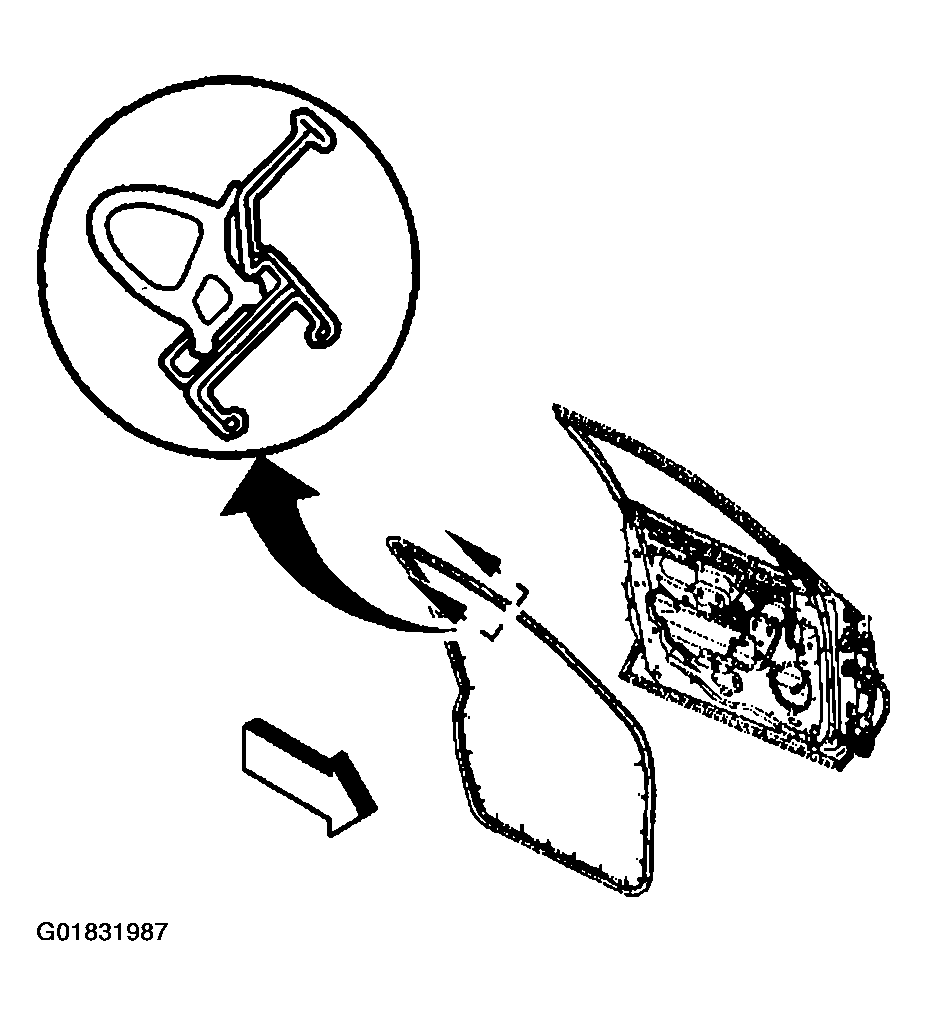

    Fig 1: Removing Front Door Weatherstrip
    G01831987Courtesy of GENERAL MOTORS CORP.
