Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the front door window to the full open position.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the outside rearview mirror. Refer to Mirror Replacement - Power .
  5. Remove the front door inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  6. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer
  7. Pull the front door window weatherstrip from the front door.

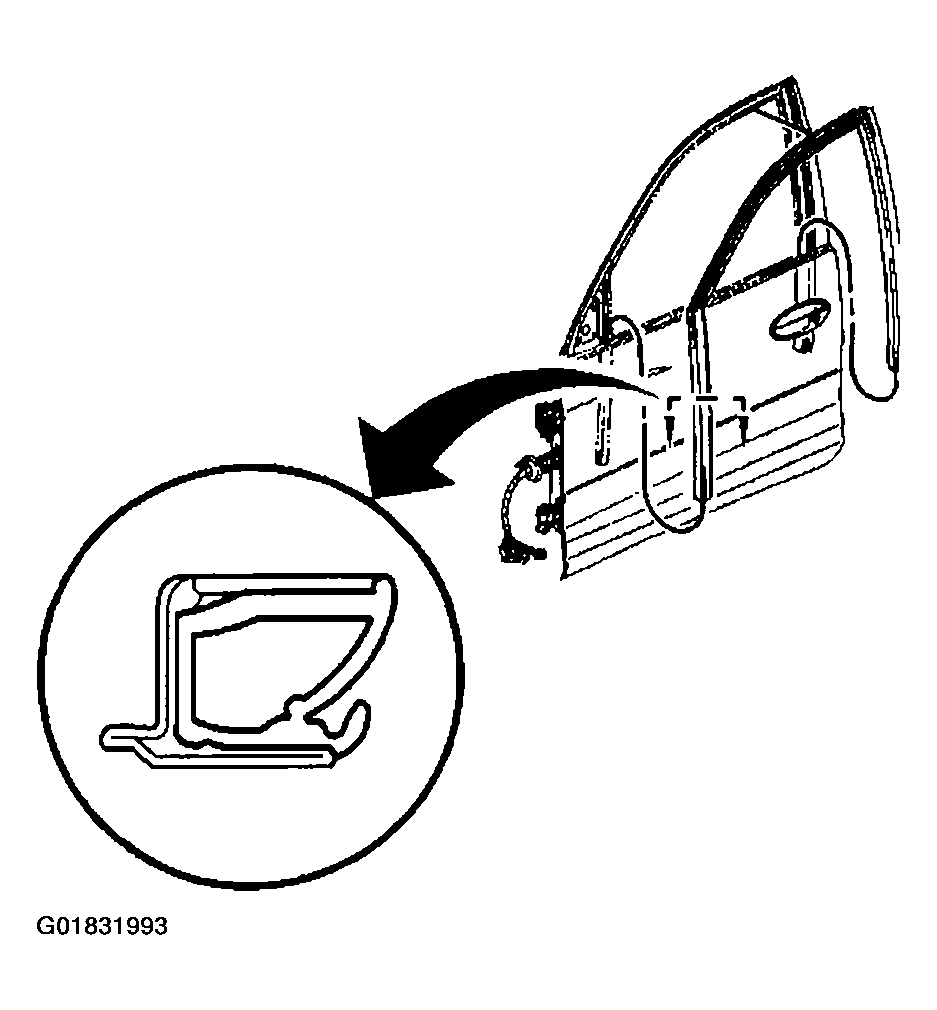

    Fig 1: Removing Front Door Window Weatherstrip From Front Door
    G01831993Courtesy of GENERAL MOTORS CORP.
