Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the carpet retainers. Refer to CARPET RETAINER REPLACEMENT - FRONT .
  3. Remove the front door weatherstrip by pulling the weatherstrip from the pinch-weld flange.

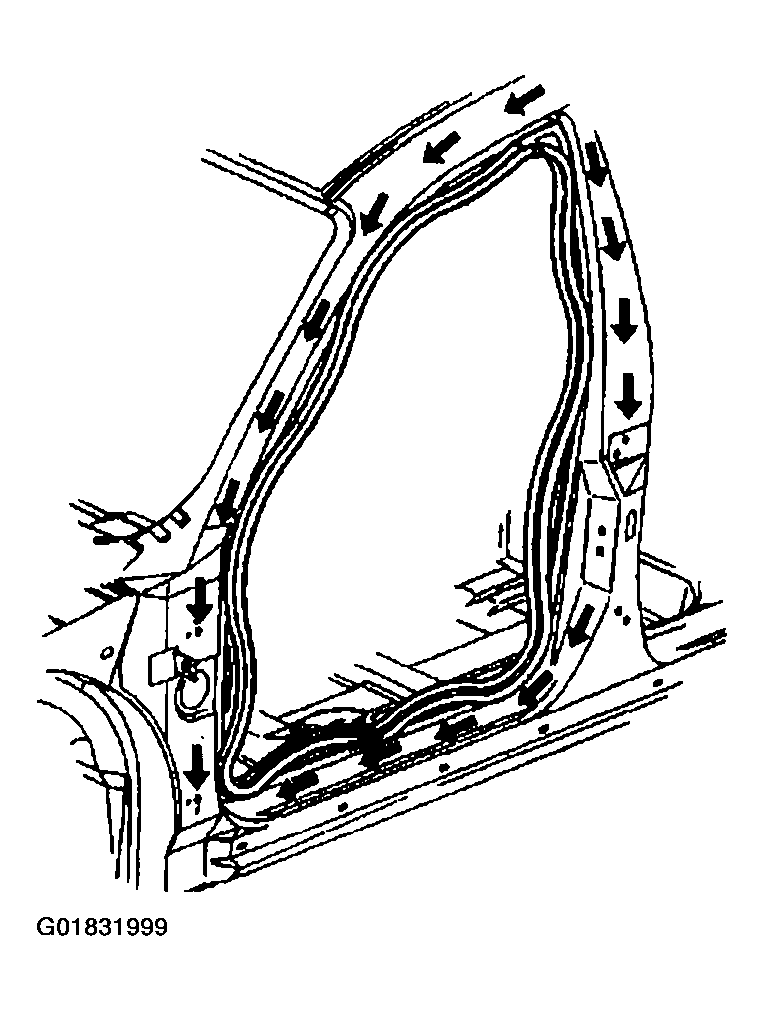

    Fig 1: Removing Front Door Weatherstrip From Pinch-Weld Flange
    G01831999Courtesy of GENERAL MOTORS CORP.
