Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the water deflector from the rear door.
  3. Remove the rear door inner handle water deflector, if replacing.

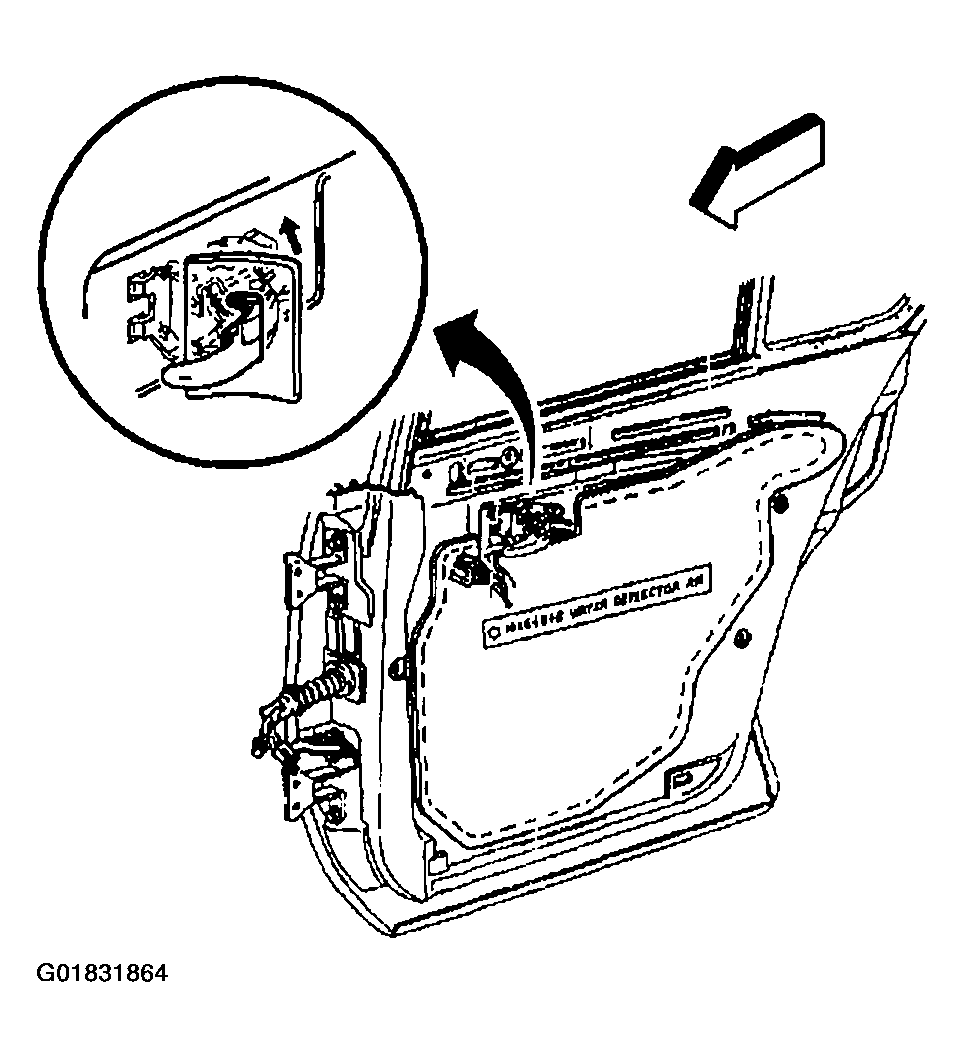

    Fig 1: Removing Rear Door Inner Handle Water Deflector
    G01831864Courtesy of GENERAL MOTORS CORP.
