Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door radio speaker. Refer to SPEAKER REPLACEMENT - FRONT LOWER .
  3. Remove the front door inner handle water deflector.
  4. Pull the wire harness through the water deflector as you remove the deflector from the door.

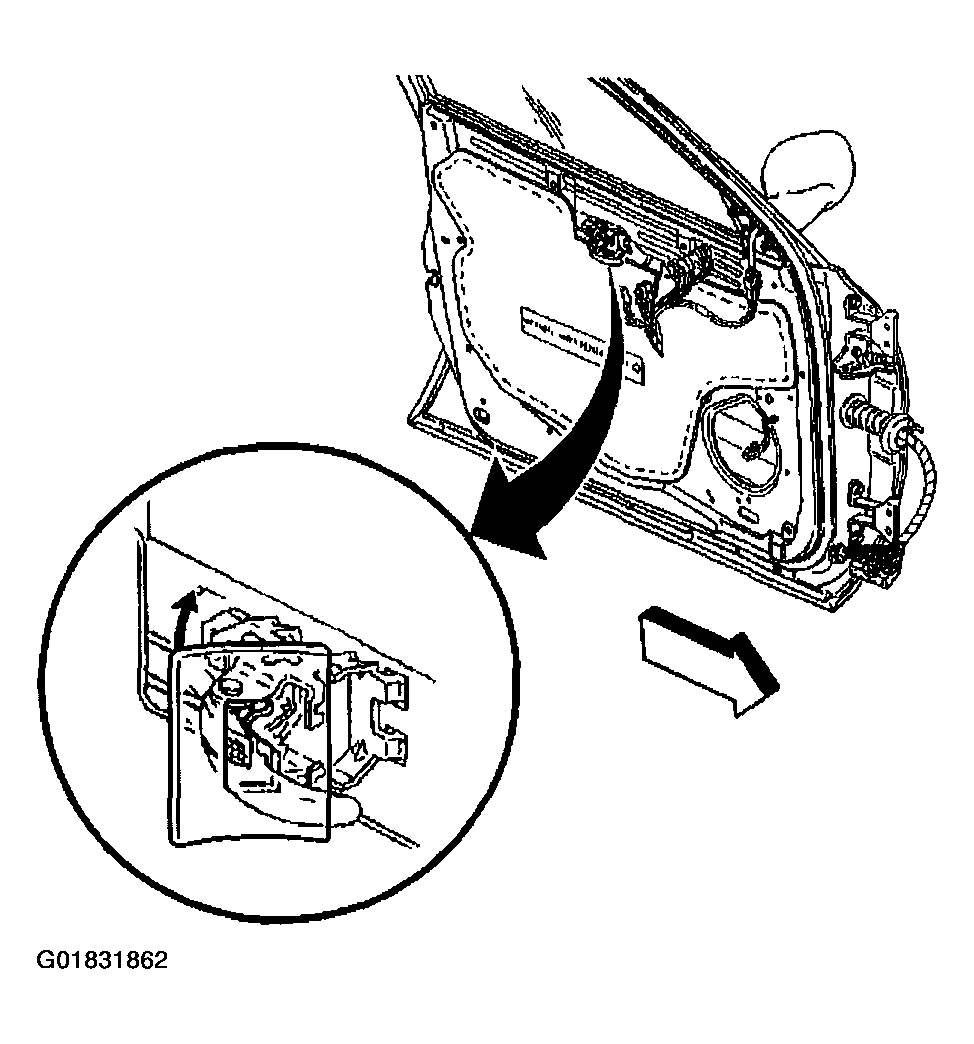

    Fig 1: Removing Front Door Water Deflector & Wire Harness
    G01831862Courtesy of GENERAL MOTORS CORP.
