Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door power window switch. Refer to Power Window Switch Replacement - Rear Door .
  2. Remove the inside door handle bezel.
  3. Remove the door trim panel TORX® bolts located under the pull handle and under the switch plate retainer.
  4. Starting at the lower rear, use J 38778  to remove the retaining clips which secure the door trim panel to the door.
  5. Remove the door trim panel from the door.

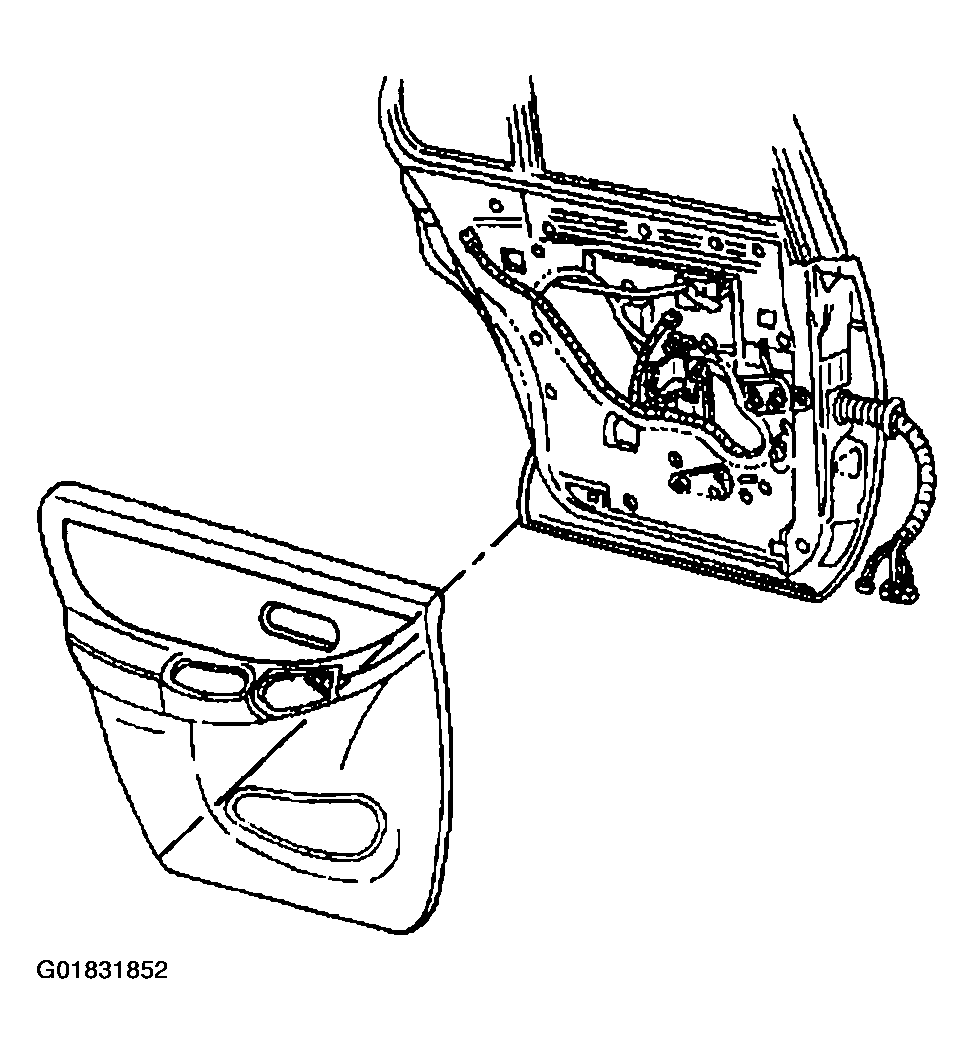

    Fig 1: Removing Door Trim Panel & Retaining Clips
    G01831852Courtesy of GENERAL MOTORS CORP.
