Removal Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

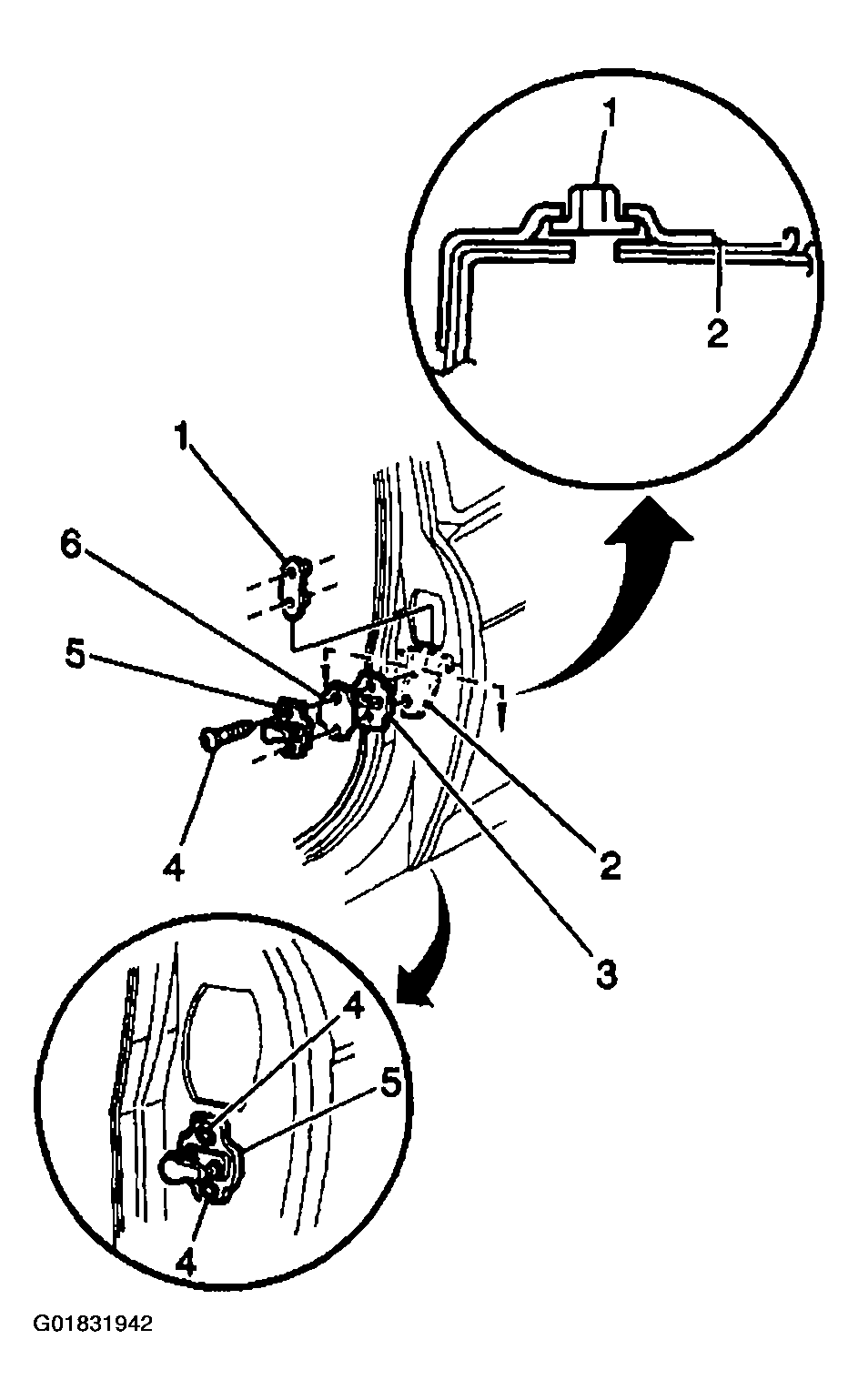

Each lock striker is a dual-pin type attached to an anchor plate in the body lock pillar. The door is held in the closed position when the lock snaps over and engages the striker.
- Use a grease pencil to mark the position of the striker (5) in relation to the body.
- Remove the striker to body screws (4).
- Remove the striker from the vehicle.
- Remove the spacers (6) as needed.
- Remove the washer (3).
