Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  2. Remove the rear door lock striker. Refer to Striker Replacement - Door .
  3. Remove the rear door lock striker anchor plate from the inside of the rear quarter.

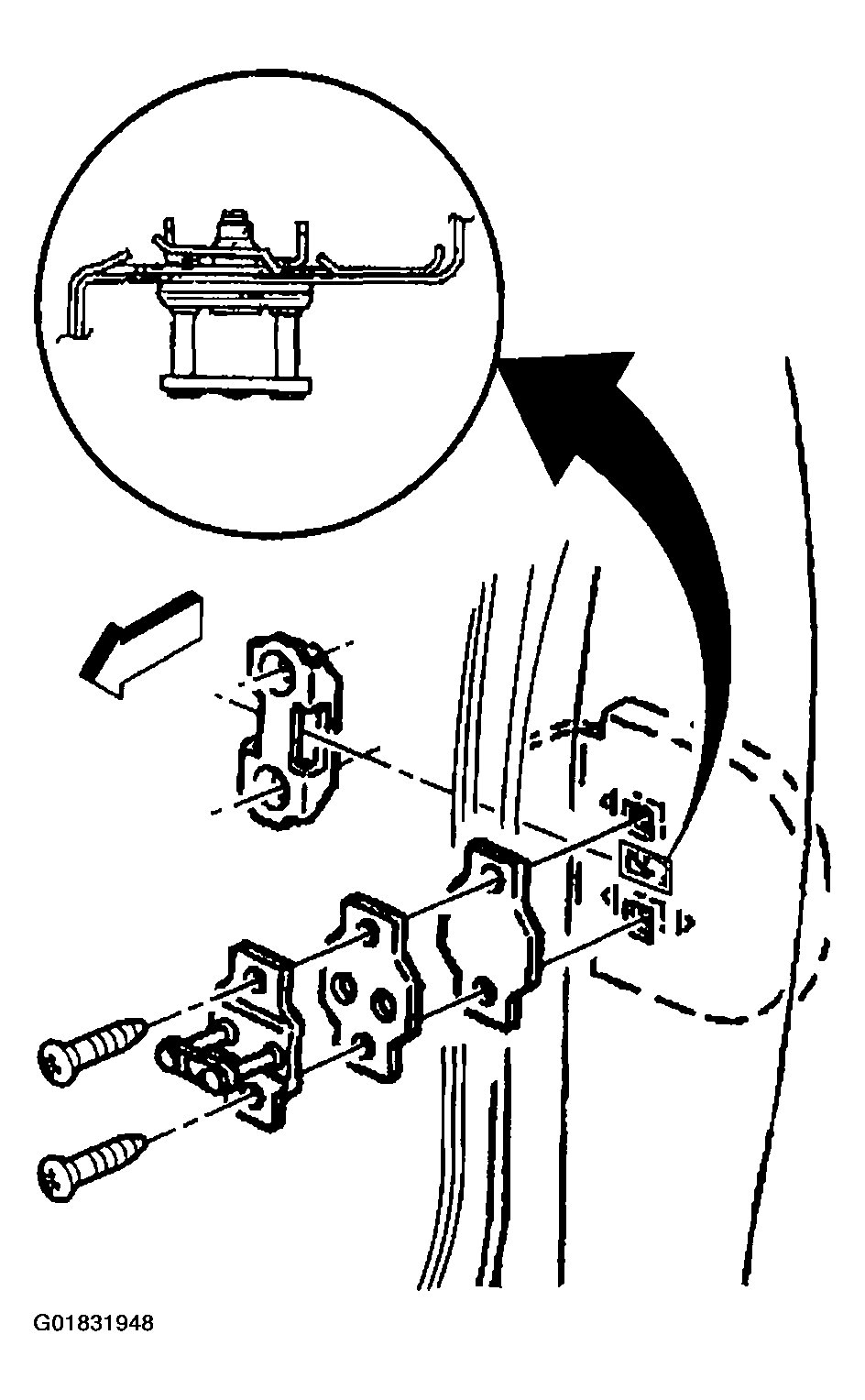

    Fig 1: Removing Rear Door Lock Striker Anchor Plate From Inside Rear Quarter
    G01831948Courtesy of GENERAL MOTORS CORP.
