Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR .
  2. Remove the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
  3. Remove the door lock striker. Refer to Striker Replacement - Door .
  4. Remove the door lock striker anchor plate from the inside of the center pillar.

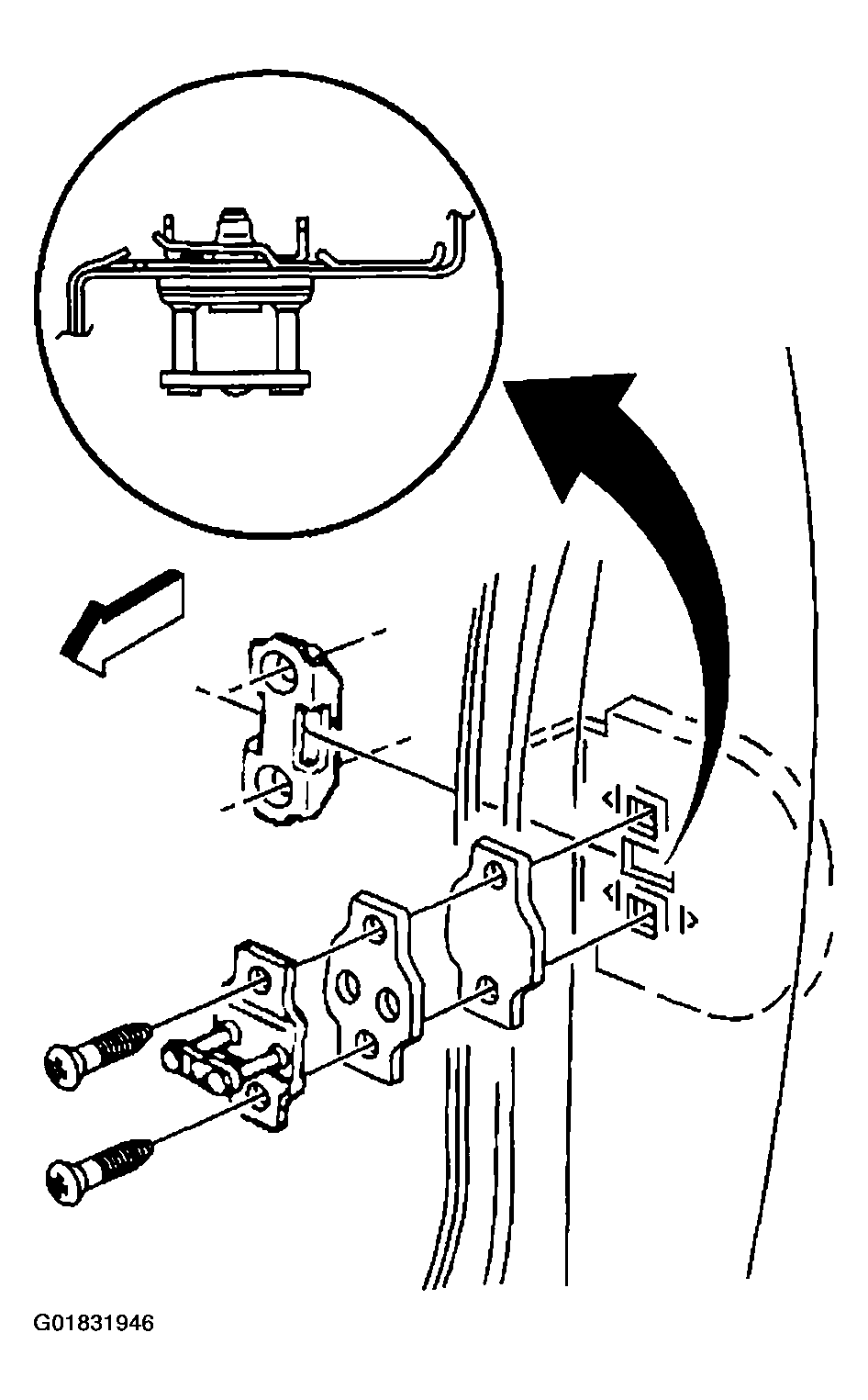

    Fig 1: Removing Door Lock Striker Anchor Plate From Inside Center Pillar
    G01831946Courtesy of GENERAL MOTORS CORP.
