Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the rear door window to the full open position.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Lift up on the rear door window, inner belt sealing strip to remove from the rear door pinch-weld flange.

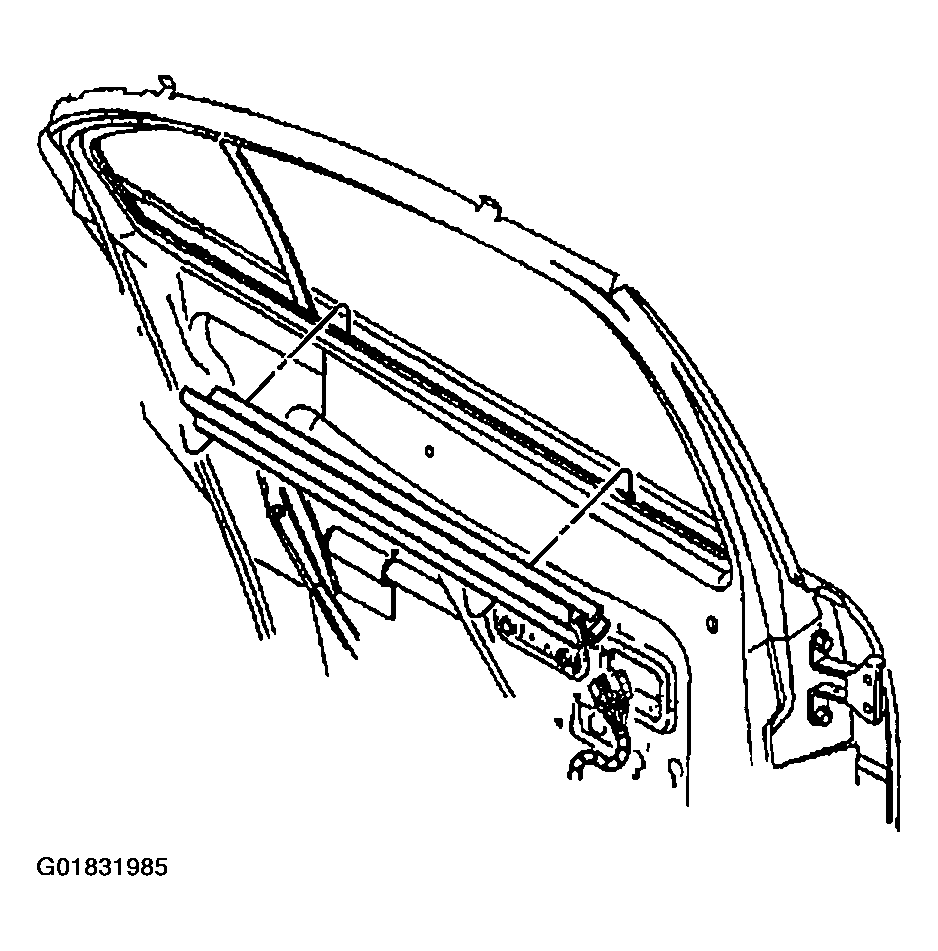

    Fig 1: Removing Rear Door Window Inner Belt Sealing Strip
    G01831985Courtesy of GENERAL MOTORS CORP.
