Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside rearview mirror. Refer to Mirror Replacement - Power .
  2. Lower the front door window to the full open position.
  3. Remove front door outer belt sealing strip to front door screw.
  4. Use a small flat-bladed tool to lift the sealing strip from the pinch-weld flange.

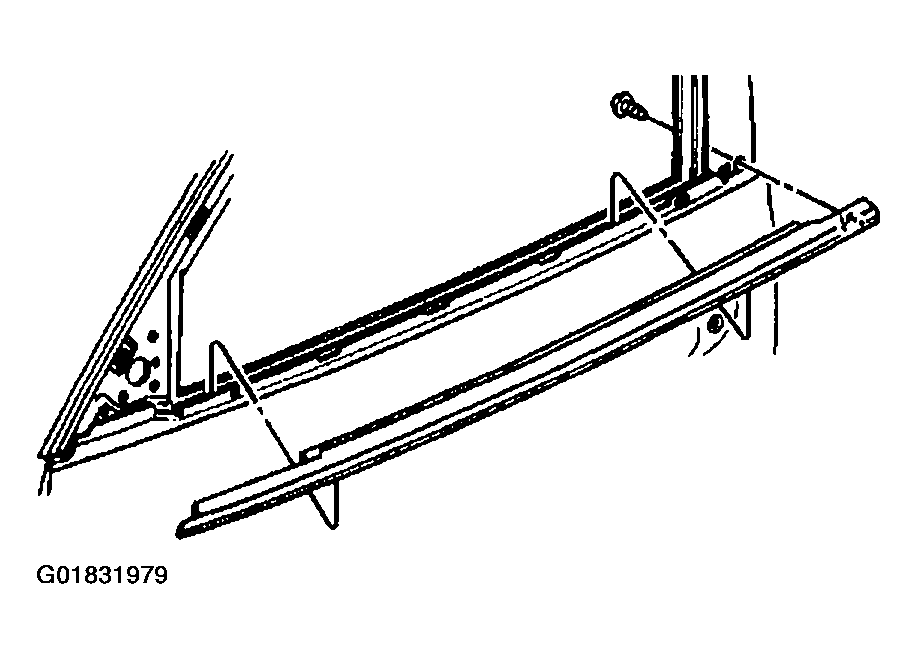

    Fig 1: Front Door Outer Belt Sealing Strip To Front Door Screw
    G01831979Courtesy of GENERAL MOTORS CORP.
