Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the front door window to the full open position.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  3. Lift up on the front door window inner belt sealing strip to remove from the front door pinch-weld flange.

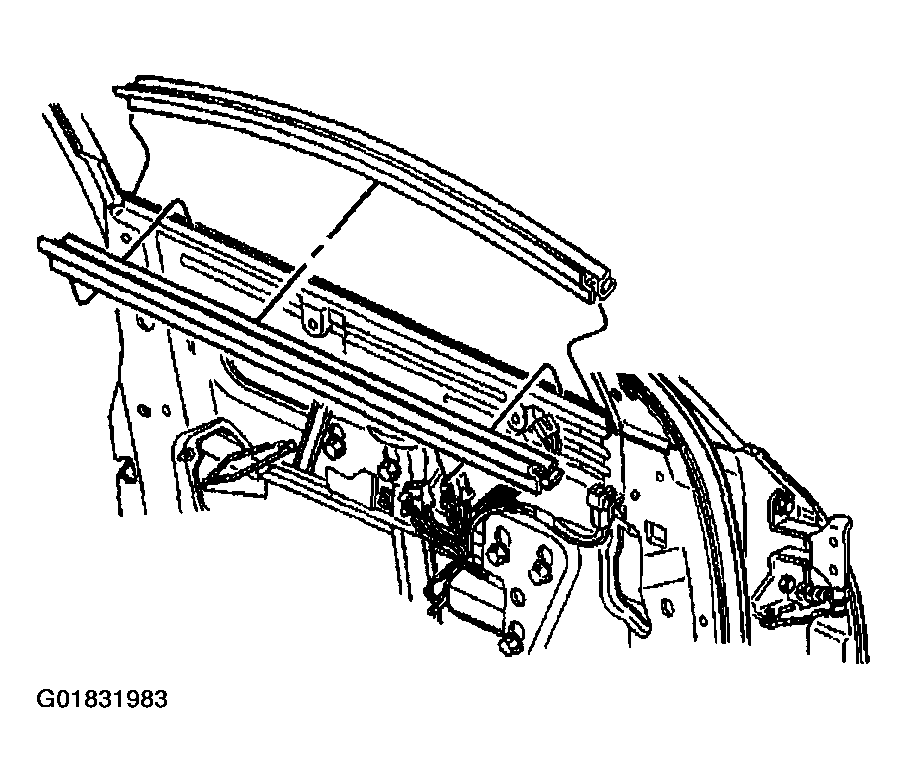

    Fig 1: Removing Front Door Window Inner Belt Sealing Strip
    G01831983Courtesy of GENERAL MOTORS CORP.
