Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door rubber conduit (1) from the center pillar.
  2. Disconnect the rear door wiring harness electrical connectors.
  3. Remove the rear door rubber conduit from the rear door.
  4. Remove the rear door rubber conduit from the rear door wiring harness.

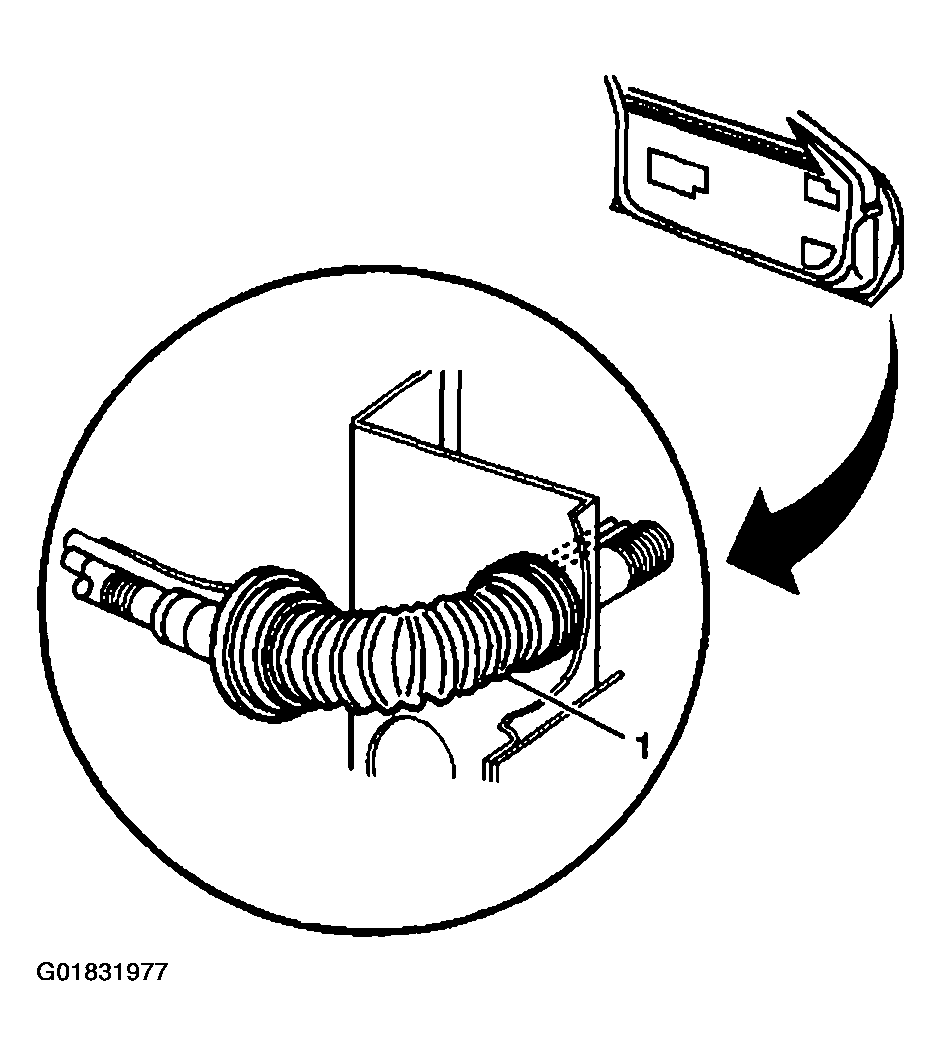

    Fig 1: Removing Rear Door Rubber Conduit
    G01831977Courtesy of GENERAL MOTORS CORP.
