Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door rubber conduit (1) from the front pillar.
  2. Disconnect the front door wiring harness electrical connectors.
  3. Remove the front door rubber conduit from the front door.
  4. Remove the front door rubber conduit from the front door wiring harness.

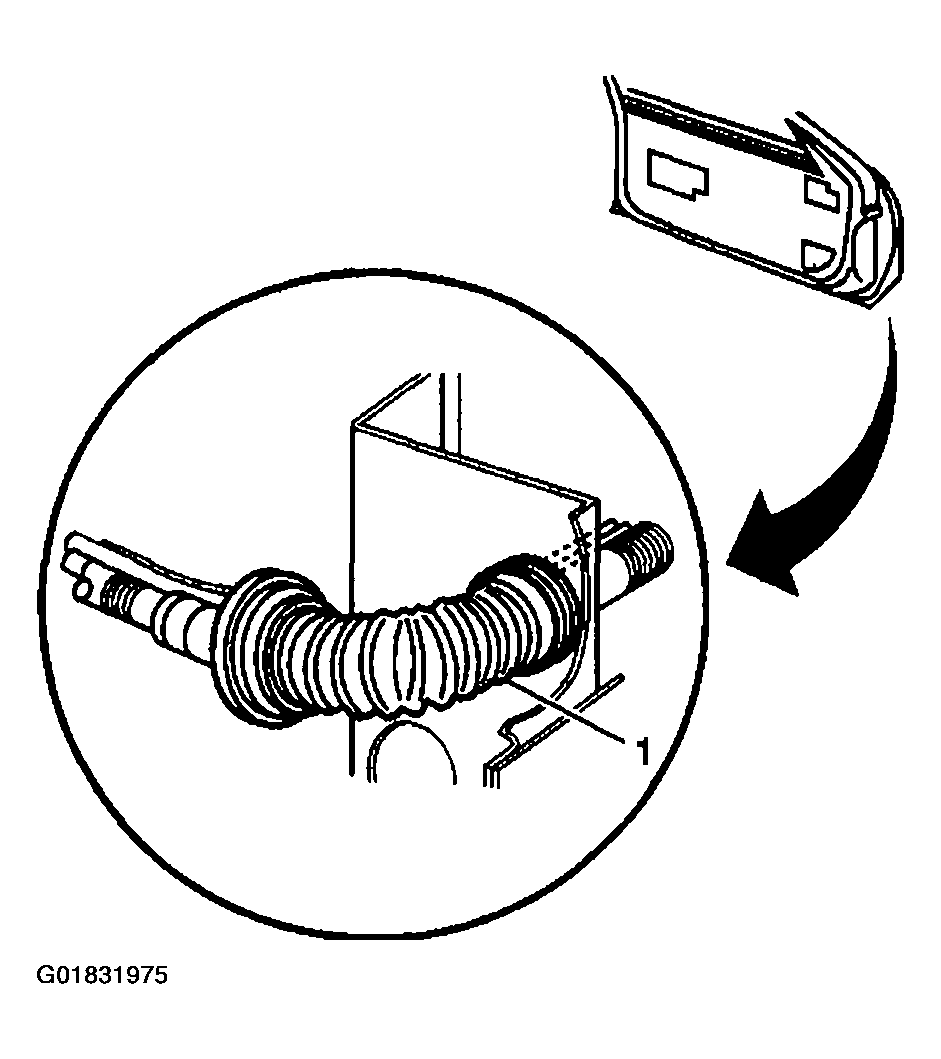

    Fig 1: Removing Front Door Rubber Conduit
    G01831975Courtesy of GENERAL MOTORS CORP.
