Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Use a small flat-bladed tool in order to release the rear door warning reflector to rear door trim panel tabs.
  4. Remove the rear door warning reflector from the rear door trim panel.

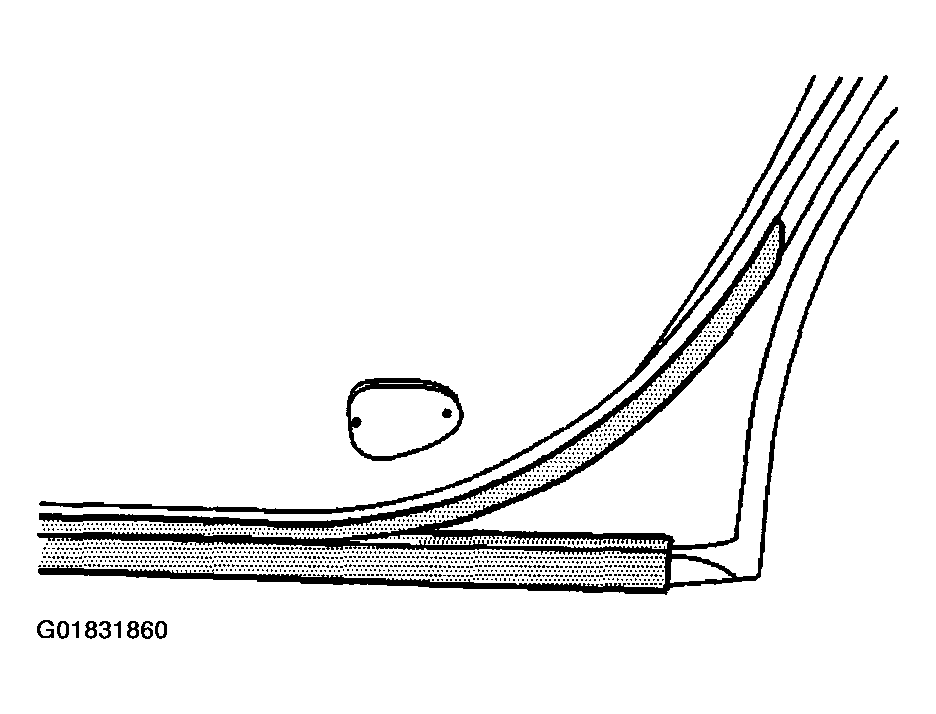

    Fig 1: Removing Rear Door Warning Reflector
    G01831860Courtesy of GENERAL MOTORS CORP.
