Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Press the retainer clips inward to release the clips which hold the front door warning reflector onto the front door trim panel.
  4. Remove the front door warning reflector from the front door trim panel.

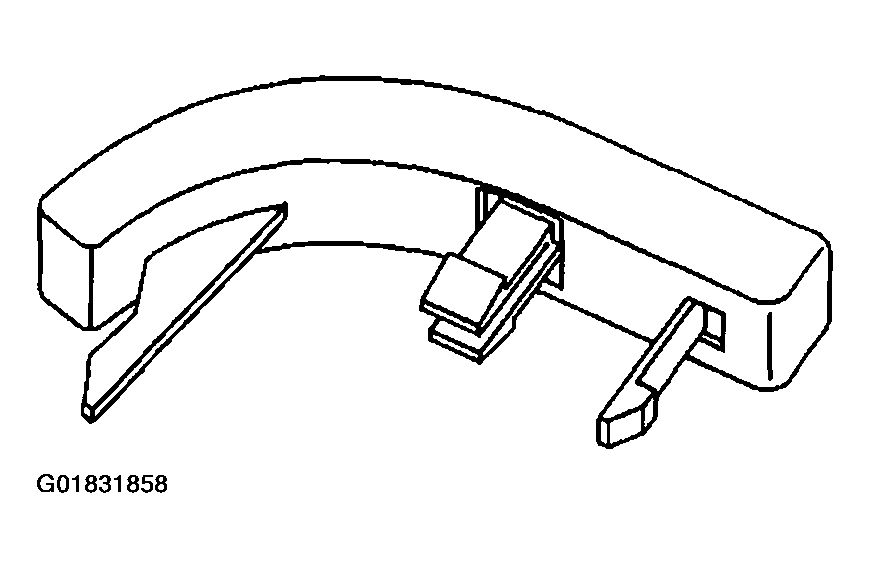

    Fig 1: Removing Front Door Warning Reflector
    G01831858Courtesy of GENERAL MOTORS CORP.
