Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door
  2. Disconnect the electrical connector to the mirror wire harness.
    CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION .
  3. Remove the mirror face. Refer to Mirror Face Replacement .

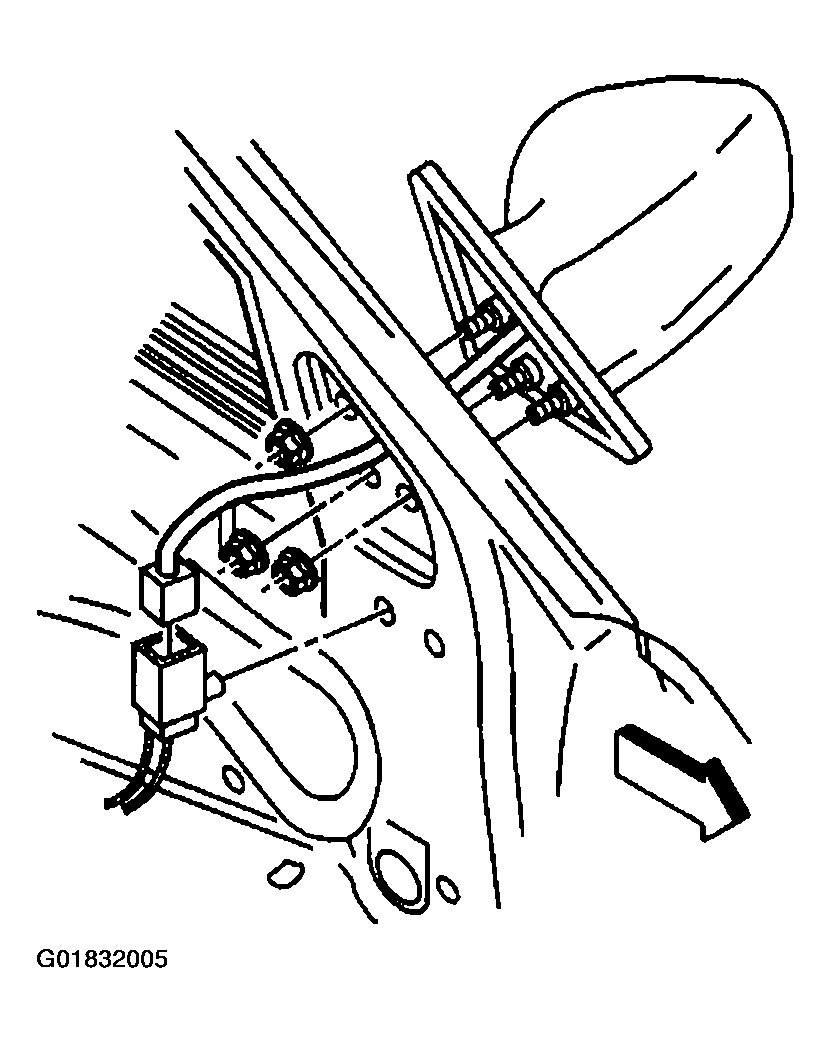

    Fig 1: Removing Mirror Face, Electrical Connector
    G01832005Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws from the mirror motor.
  5. Pull the motor electrical harness through the mirror housing.
  6. Remove the motor from the mirror housing.

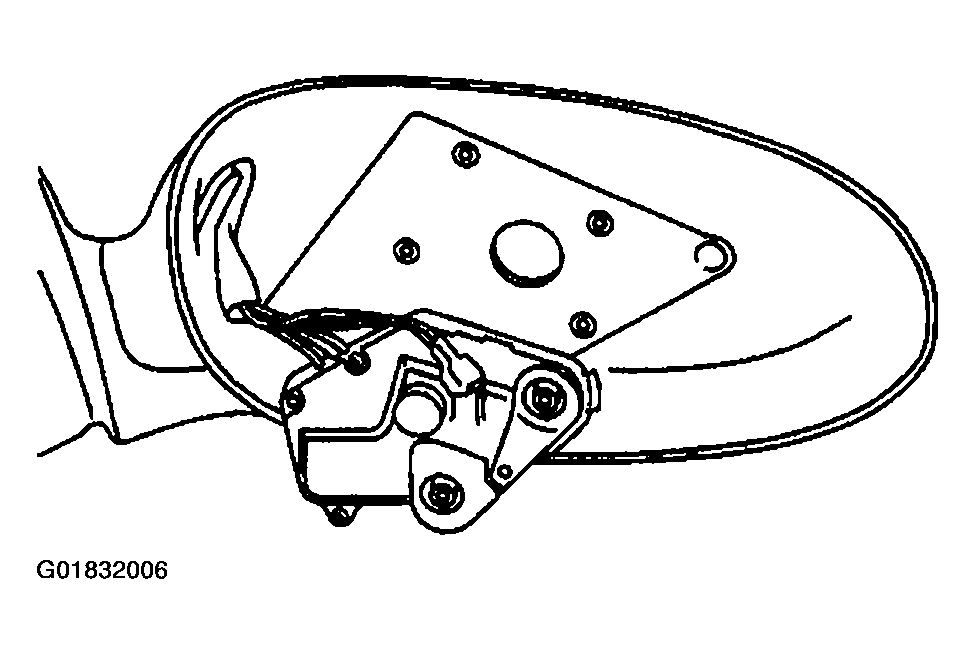

    Fig 2: Removing Motor, Electrical Harness & Screws
    G01832006Courtesy of GENERAL MOTORS CORP.
