Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  2. Disconnect the electrical connector from the outside rearview mirror.

    Important:  Support the outside rearview mirror.

  3. Remove the outside rearview mirror to front door nuts.
  4. Remove the outside rearview mirror from the front door.

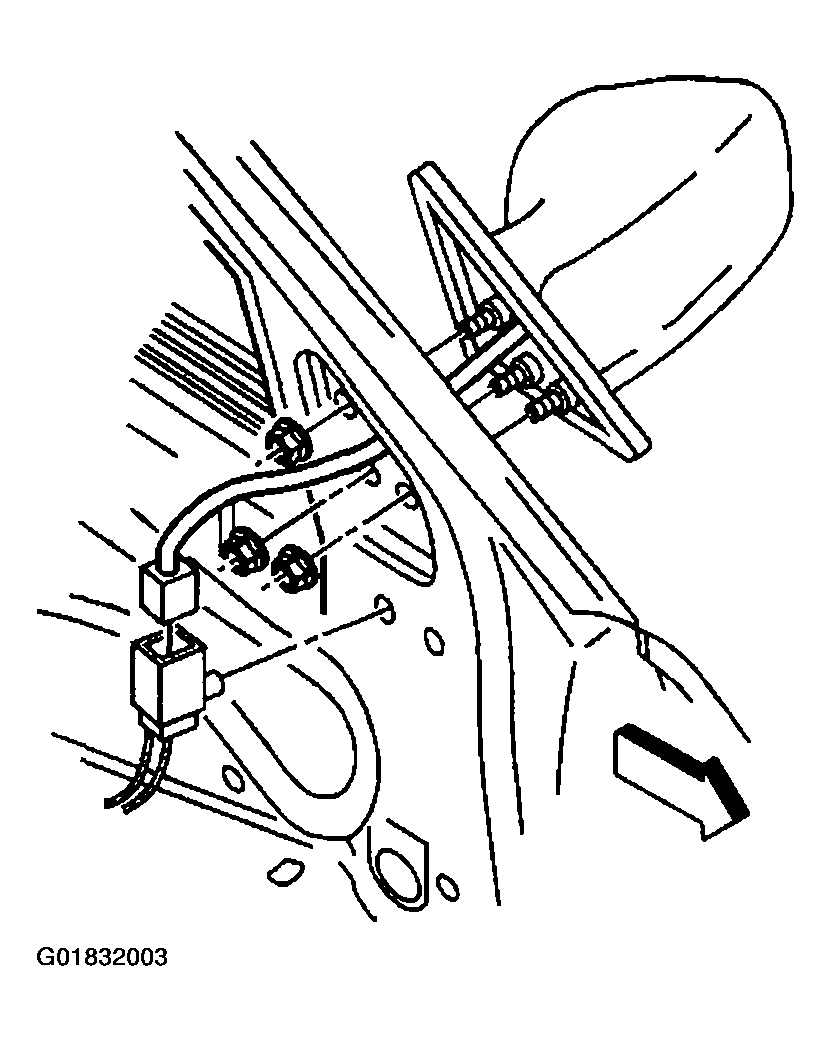

    Fig 1: Removing Outside Rearview Mirror, Electrical Connector & Nuts
    G01832003Courtesy of GENERAL MOTORS CORP.
